DLC11001 Red Lion Industrial Automation Components
Part#:DLC11001
Manufacturer:Red Lion
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

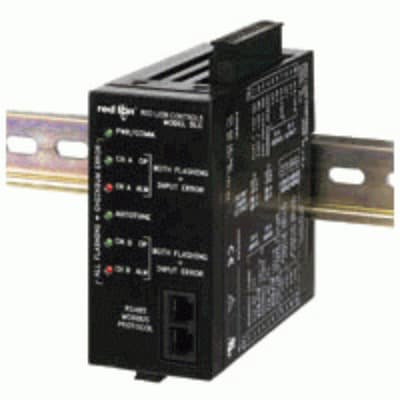

Red Lion DLC11001 is a digital temperature controller designed for DIN rail mounting, part of the PID controllers DLC series. It features two analog outputs (0-20mA / 0-10Vdc) with a 1/18000 conversion resolution and three digital outputs (24Vdc; 1A; MOSFET), including OP1, AL1, and an additional digital output (AL2 / OP2). The device is equipped with two analog inputs supporting 4-20mA / 0-20mA / 0-10Vdc, thermocouples types T, E, J, K, R, S, B, N, C, and RTDs types Pt100, NI120, with a 1mV/1μA conversion resolution, a 100ms sample period, a 300-400ms response time, and 0.1% accuracy. It operates as a dual setpoint temperature controller, accepts a supply voltage of 18-36Vdc or 24Vac, with a network frequency of 50/60 Hz, and communicates via RS-485 Modbus protocol. The analog inputs have a sampling rate of 9.5Hz.
Product Details
- Main function Temperature controller (Digital)
- Functions Dual setpoint temperature controller
- Frequency 9.5Hz analog inputs sampling rate
- Digital outputs 1 x digital output (24Vdc; 1A; MOSFET) (OP1) 1 x digital output (24Vdc; 1A; MOSFET) (AL1) 1 x digital output (AL2 / OP2)
- Network frequency 50/60 Hz
- Benefits Modular building block for multi-zone process control Two independent PID control loops PID control with reduced overshoot Universal inputs signals Two DC analog outputs (optional) Windows configuration software RS-485 Modbus protocol Channel B can be ass
- Communication protocol RS-485 Modbus
- Order code / Manufacturer SKU DLC11001
- Product series / family name Process controllers
- Mounting mode DIN rail
- Primary brand Red Lion
- Supply voltage (AC) 24Vac
- Analog outputs 2 x analog outputs (0-20mA / 0-10Vdc; 1/18000 conversion resolution)
- Design 2 analog outputs
- Analog inputs 2 x analog inputs (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / RTDs types Pt100; NI120; 1mV/1μA conversion resolution / 100ms sample period; 300-400ms response time; 0.1% accuracy)
- Sub-range name PID controllers DLC series
- Supply voltage (DC) 18-36Vdc (24Vdc)
- Compliant with standard(s) CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DLC11001 on Applied Automation is $649.00. Order now.
