C48TS013 Red Lion Industrial Automation Components

C48TS013 on Applied Automation
Red Lion

Part#:C48TS013

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

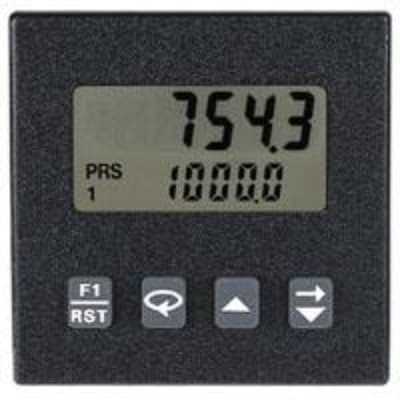

Red Lion C48TS013 is a single-preset digital timer within the C48 series, featuring 2 user inputs and designed to fit a 1/16 DIN (48x48mm) panel cutout. It displays time with 7.62mm red and 5.08mm green digits on a reflective LCD without backlight. This timer operates on a supply voltage of 24Vac or a DC range of 18-36Vdc, specifically 24Vdc. Its dimensions conform to 1/16 DIN standards, measuring W48mm x H48mm (1.89" x 1.89"). The C48TS013 offers a degree of protection rated at IP65 and NEMA 4X. It includes digital inputs: 1 x digital input (Sink/Source) for user input 1, 1 x digital input (Sink/Source) for START/STOP functions, and 1 x digital input (Sink/Source) for user input 3. Additionally, it provides digital outputs: 1 x digital output (NPN) and 1 x digital output (contact type NO).

Product Details

  • Main function
    Timer (Digital)
  • Design
    2 user inputs 1/16 DIN (48x48mm) 7.62mm red / 5.08mm green digits / reflective LCD (no backlight)
  • Primary brand
    Red Lion
  • Display
    2 rows x 6-digits reflective LCD display 7.62mm high red characters (top row) 5.08mm high green characters (bottom row)
  • Digital inputs
    1 x digital input (Sink/Source) (USER INPUT 1) 1 x digital input (Sink/Source) (START/STOP) 1 x digital input (Sink/Source) (user input 3)
  • Sub-range name
    C48 series
  • Degree of protection
    IP65 NEMA 4X
  • Order code / Manufacturer SKU
    C48TS013
  • Product series / family name
    Process timers
  • Supply voltage (AC)
    24Vac
  • Functions
    Single-preset digital timer
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Digital outputs
    1 x digital output (NPN) 1 x digital output (contact type NO)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of C48TS013 on Applied Automation is $271.00. Order now.
