C48CD005 Red Lion Industrial Automation Components

C48CD005 on Applied Automation
Red Lion

Part#:C48CD005

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

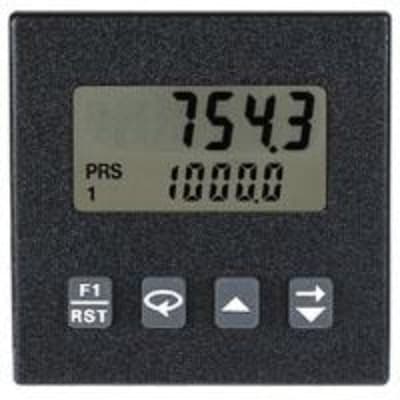

Red Lion C48CD005 is a dual preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. For communication, it utilizes the RS-485 protocol. The C48CD005 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. It also includes 1 digital output (NPN).

Product Details

  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Degree of protection
    IP65 NEMA 4X
  • Mounting mode
    Flush / door
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Product series / family name
    Process indicators
  • Functions
    Dual preset digital counter
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Sub-range name
    C48 series
  • Communication protocol
    RS-485
  • Digital outputs
    1 x digital output (NPN)
  • Order code / Manufacturer SKU
    C48CD005
  • Benefits
    Nine programmable counting modes Bi-directional / anti-coincidence / quadrature counting NEMA 4x / IP65 sealed front bezel
  • Supply voltage (DC)
    11-14Vdc (12Vdc)
  • Digital inputs
    1 x digital input (high-speed counter; 12kHz; Sink/Source) (INPUT A) 1 x digital input (Sink/Source) (USER INPUT 1) 1 x digital input (Sink/Source) (input B / user input 1)
  • Main function
    Counter (Digital)
  • Display
    2 rows x 6-digits reflective LCD display with black characters (top; 7.62mm high / bottom; 5.08mm high)
  • Design
    1/16 DIN (48x48mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of C48CD005 on Applied Automation is $380.00. Order now.
