C48CB110 Red Lion Industrial Automation Components

C48CB110 on Applied Automation
Red Lion

Part#:C48CB110

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

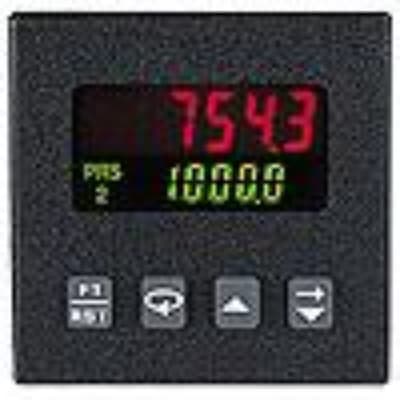

Red Lion C48CB110 is a digital counter from the C48 series designed for batch counting applications. It features a 1/16 DIN (48x48mm) size with 7.62mm red and 5.08mm green digits for clear display. The counter operates on a supply voltage of 24Vac or a DC range of 18-36Vdc, specifically 24Vdc. Its dimensions conform to the 1/16 DIN standard, measuring W48mm x H48mm (1.89" x 1.89"). The C48CB110 offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. It is equipped with one high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. Furthermore, it includes one digital output (NPN).

Product Details

  • Primary brand
    Red Lion
  • Product series / family name
    Process indicators
  • Supply voltage (AC)
    24Vac
  • Digital inputs
    1 x digital input (high-speed counter; 12kHz; Sink/Source) (INPUT A) 1 x digital input (Sink/Source) (USER INPUT 1) 1 x digital input (Sink/Source) (input B / user input 1)
  • Sub-range name
    C48 series
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Main function
    Counter (Digital)
  • Functions
    Batch digital counter
  • Digital outputs
    1 x digital output (NPN)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Display
    2 rows x 6-digits negative LCD display 7.62mm high digits red backlight (top row) 5.08mm high digits green backlight (bottom row)
  • Mounting mode
    Flush / door
  • Replaces
    C48CB011
  • Design
    1/16 DIN (48x48mm) 7.62mm red / 5.08mm green digits
  • Degree of protection
    IP65 NEMA 4X
  • Benefits
    Nine programmable counting modes Bi-directional / anti-coincidence / quadrature counting NEMA 4x / IP65 sealed front bezel
  • Order code / Manufacturer SKU
    C48CB110

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of C48CB110 on Applied Automation is $387.00. Order now.
