C48CB108 Red Lion Industrial Automation Components

C48CB108 on Applied Automation
Red Lion

Part#:C48CB108

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

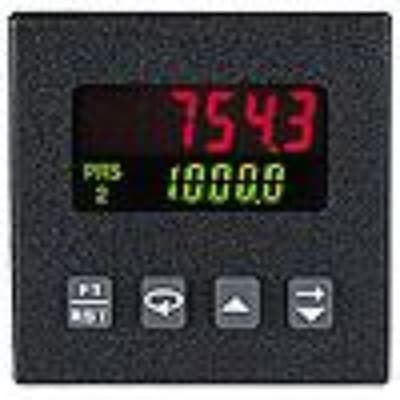

Red Lion C48CB108 is a digital counter from the C48 series designed for batch counting applications. It features a 1/16 DIN (48x48mm) size with 7.62mm red and 5.08mm green digits for clear display. The unit can be powered by a wide range of AC supply voltages from 85 to 250Vac, including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, or by a DC supply voltage of 11-14Vdc, specifically 12Vdc. Its dimensions conform to 1/16 DIN standards, measuring W48mm x H48mm (1.89" x 1.89"). The C48CB108 offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. Communication is facilitated via an RS-485 protocol. It is equipped with digital inputs, including 1 high-speed counter input (12kHz; Sink/Source) labeled INPUT A, 1 digital input (Sink/Source) for USER INPUT 1, and an additional digital input (Sink/Source) for input B or user input 1. The device also provides digital outputs, comprising 1 NPN output and 1 contact type NO output.

Product Details

  • Product series / family name
    Process indicators
  • Mounting mode
    Flush / door
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Benefits
    Nine programmable counting modes Bi-directional / anti-coincidence / quadrature counting NEMA 4x / IP65 sealed front bezel
  • Sub-range name
    C48 series
  • Functions
    Batch digital counter
  • Digital outputs
    1 x digital output (NPN) 1 x digital output (contact type NO)
  • Replaces
    C48CB008 C48CB009
  • Main function
    Counter (Digital)
  • Supply voltage (DC)
    11-14Vdc (12Vdc)
  • Communication protocol
    RS-485
  • Degree of protection
    IP65 NEMA 4X
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Digital inputs
    1 x digital input (high-speed counter; 12kHz; Sink/Source) (INPUT A) 1 x digital input (Sink/Source) (USER INPUT 1) 1 x digital input (Sink/Source) (input B / user input 1)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Display
    2 rows x 6-digits negative LCD display 7.62mm high digits red backlight (top row) 5.08mm high digits green backlight (bottom row)
  • Design
    1/16 DIN (48x48mm) 7.62mm red / 5.08mm green digits
  • Order code / Manufacturer SKU
    C48CB108

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of C48CB108 on Applied Automation is $424.00. Order now.



Manufacturer warranty

C48CB108 Red Lion

$424.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$424.00

$424.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
