C48CB100 Red Lion Industrial Automation Components
Part#:C48CB100
Manufacturer:Red Lion
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

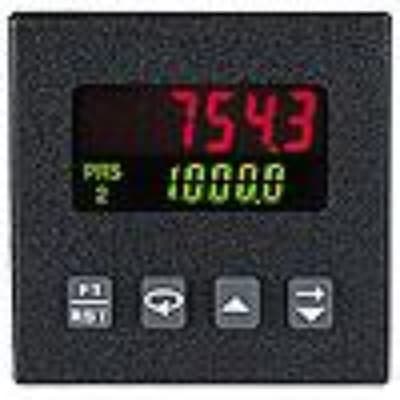

Red Lion C48CB100 is a digital counter from the C48 series, designed for batch counting applications. It features a 1/16 DIN (48x48mm) form factor with dual-color digits, 7.62mm in red and 5.08mm in green, for clear visibility. The unit can be powered by a wide range of AC supply voltages from 85 to 250Vac, including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, or by a DC supply voltage of 11-14Vdc, specifically 12Vdc. Its dimensions conform to 1/16 DIN standards, measuring W48mm x H48mm (1.89" x 1.89"). The C48CB100 offers a high degree of protection with an IP65 NEMA 4X rating, suitable for flush or door mounting. It is equipped with one high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input for user configuration (Sink/Source) labeled USER INPUT 1, and a third digital input that can function as input B or user input 1 (Sink/Source). For output, it provides one digital NPN output.
Product Details
- Mounting mode Flush / door
- Dimensions 1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
- Sub-range name C48 series
- Display 2 rows x 6-digits negative LCD display 7.62mm high digits red backlight (top row) 5.08mm high digits green backlight (bottom row)
- Digital outputs 1 x digital output (NPN)
- Order code / Manufacturer SKU C48CB100
- Primary brand Red Lion
- Supply voltage (AC) 85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
- Design 1/16 DIN (48x48mm) 7.62mm red / 5.08mm green digits
- Benefits Nine programmable counting modes Bi-directional / anti-coincidence / quadrature counting NEMA 4x / IP65 sealed front bezel
- Product series / family name Process indicators
- Functions Batch digital counter
- Degree of protection IP65 NEMA 4X
- Main function Counter (Digital)
- Supply voltage (DC) 11-14Vdc (12Vdc)
- Digital inputs 1 x digital input (high-speed counter; 12kHz; Sink/Source) (INPUT A) 1 x digital input (Sink/Source) (USER INPUT 1) 1 x digital input (Sink/Source) (input B / user input 1)
- Compliant with standard(s) CE EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of C48CB100 on Applied Automation is $370.00. Order now.
