RV01A1N110 Parker Hannifin Industrial Automation Components
Part#:RV01A1N110
Manufacturer:Parker Hannifin
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

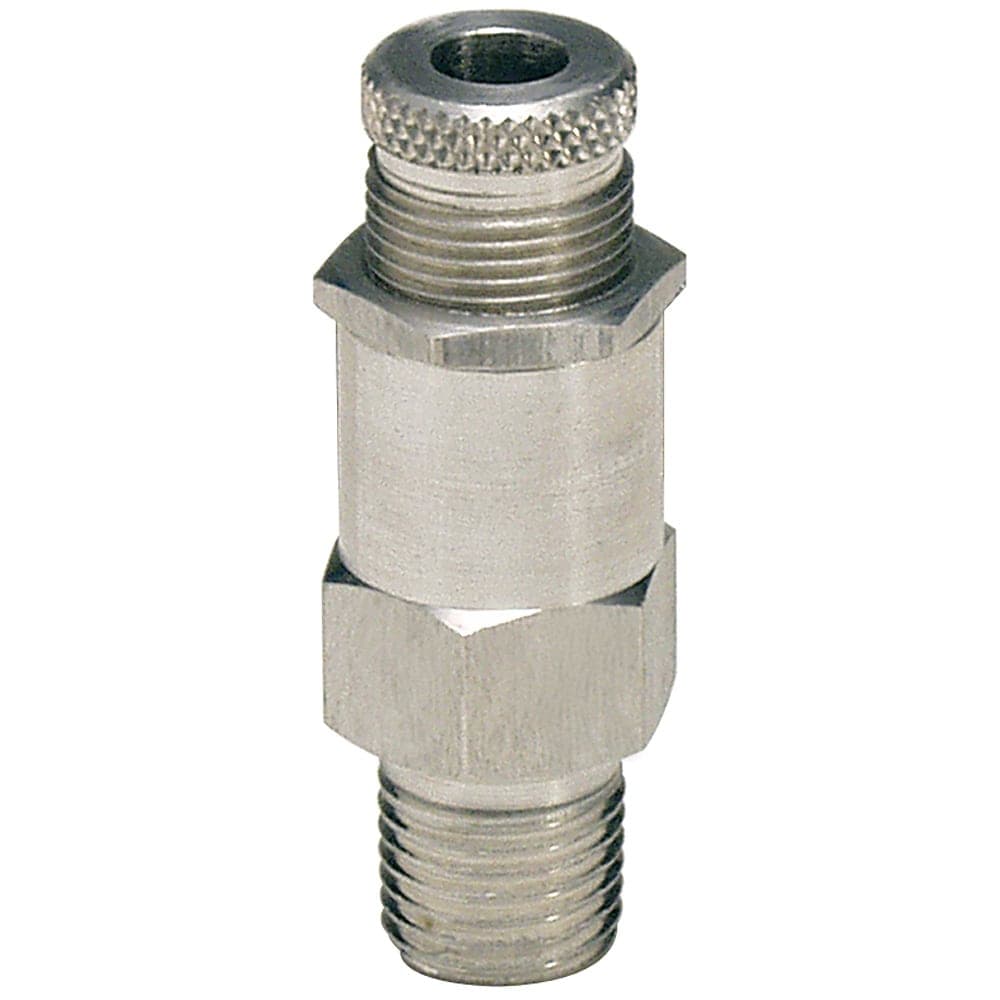

Relief Valves - RV Series
Product Details
- HTS Code 8481400000
- Pressure Relief Setting 110 psig
- Operating Temperature +32° to +200° °F
- Division Pneumatic Division
- Body Material Aluminum
- Adjustment Mechanism Knurled Knob
- Port Size 1/4"
- Adjustment Screw Material Steel Locking Nut and Spring
- Port Type NPT
- Maximum Inlet Pressure Rating 20.7 barg
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RV01A1N110 on Applied Automation is $44.63. Order now.
About the product
The RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. It has a compact lightweight aluminum construction with high relief capacity (70.39 Cv @ 150 PSI). The adjustment range is called out within the part number and set at factory. Markets General Industrial Factory Automation Automotive Features/Benefits Compact and light weight construction High relief capacity Applications General Assembly Packaging Conveyance General Pneumatics Additional Information Connection: Male Relief Range: 10 to 200 psig (or 0.7 to 14 bar) Maximum Inlet Pressure: 300 psig (or 20.7 bar) Adjustment: Control Knurled Knob Material Aluminum Body, Steel Locking Nut and Spring, Plastic Poppet, Nitrile Seat Thread Size: 1/4" Thread Type: NPT Temperature Range: 32°F to 200°F (or 0°C to 93°C)
