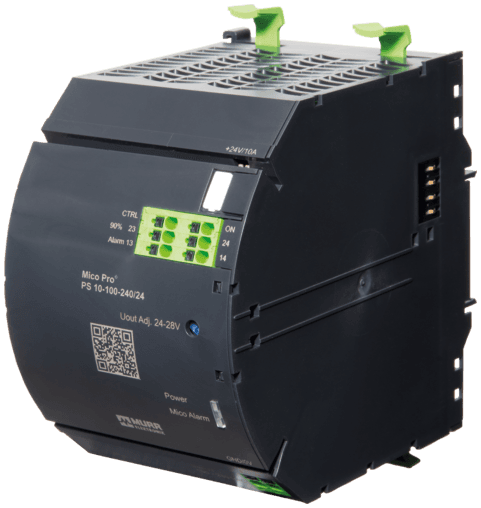

9000-41190-0000110 Murr Elektronik Power Supply Accessories

Product Details

• Weight
  820 g
• Series
  Transformators/Power Supplies
• Dimensions H×W×D
  130×74×114 mm
• Spikes
  max. 380 mV ss/pp
• Input fuse (internal)
  6.3 A (T)
• Protection
  IP20
• LED display (Mico Pro)
  LED (red): Failure
• Input voltage (ON)
  9...30 V DC
• Output voltage
  24 V DC (SELV), ±1%; 24...28 V adjustable
• Inrush current after 1 ms
  max. 25 A
• Product article number of manufacturer
  9000-41190-0000110
• Standards
  IEC 61010-2-201, EN 61204-3, EN 61000-3-2
• LED display (Power)
  LED (green): OK; LED (red): overload, overheating or short-circuit
• Power factor
  0.69 (115 V AC); 0.62 (230 V AC)
• Output current
  10 A
• Early warning (90%)
  max. 30 V AC/DC
• Relative humidity
  5...95%, no condensation
• Input voltage
  90...265 V AC
• Frequency
  50...60 Hz
• Mounting method
  DIN-rail mountable TH35 (EN 60715)
Mains failure bridging time
min. 44 ms (115 V AC); min. 44 ms (230 V AC)
Input current
3.7 A (115 V AC); 1.7 A (230 V AC)
Group alarm output
max. 30 V AC/DC
Efficiency
91.8% (115 V AC); 93.6% (230 V AC)
Ripple
max. 20 mV eff/rms
Impulse length (ON)
"high" 120 ms
Temperature range
-25...+55 °C (storage temperature -40...+85 °C)
Unit protection
Short-circuit, overload and temperature
Impulse length (CTRL)
OFF "high" 40/400 ms, ON "high" 20/200 ms
Connection
Push-In spring clamp terminals
Parallel usage/serial usage
max. 2 units/no
Input voltage (CTRL)
9...30 V DC
