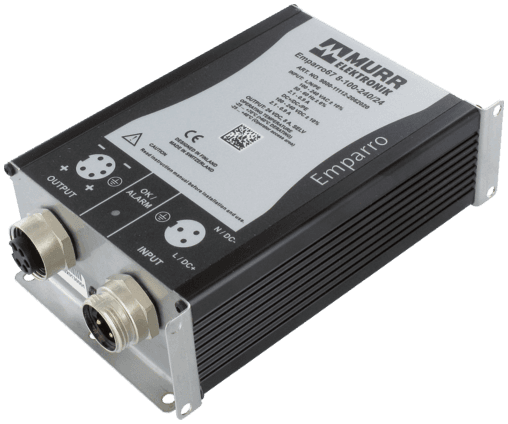

9000-11112-2062020 Murr Elektronik AC/DC Power Supplies

Product Details

• Weight
  1550 g
• Series
  Transformators/Power Supplies
• Mounting method
  6 hole screw mounting
• Mains failure bridging time
  min. 35 ms (230 V AC); 8 A (24 V DC)
• Standards
  IEC 61010-2-201, EN 61204-3, EN 55011 A, EN 61000-3-2
• Ripple
  max. 30 mV eff/rms
• Parallel usage/serial usage
  max. 3 units/max. 2 units
• Temperature range
  -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
• Connection
  7/8" (female), 5-pole
• Input current
  2.1 A (100 V AC); 0.9 A (240 V AC)
• Output voltage
  24 V DC (SELV), ±2%
• Power factor
  0.95 (230 V AC)
• Protection
  IP67
• LED display
  LED (green): OK; LED (red): overload, overheating or short-circuit
• Product article number of manufacturer
  9000-11112-2062020
• Output current
  8 A
• Input voltage
  90...265 V AC/90...265 V DC
• Power Boost
  Iout N × 150% (min. 4 s)
• Unit protection
  Short-circuit, overload and temperature
• Dimensions H×W×D
  51×109×175 mm
Inrush current after 1 ms
max. 7 A (230 V AC)
Efficiency
93.5% (115 V AC); 94.2% (230 V AC)
Spikes
max. 300 mV ss/pp
Frequency
50...60 Hz
Relative humidity
4...100%
Input fuse (internal)
6.3 A (T)
