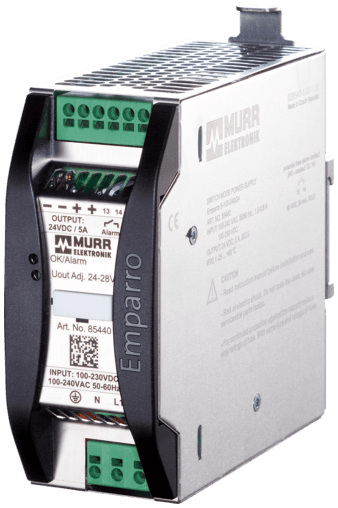

9000-11112-0921111 Murr Elektronik AC/DC Power Supplies

Product Details

• Weight
  795 g
• Series
  Transformators/Power Supplies
• Protection
  IP20
• Parallel usage/serial usage
  max. 5 units/max. 2 units
• Input current
  1.3 A (100 V AC); 0.61 A (240 V AC)
• Mounting method
  DIN-rail mountable TH35 (EN 60715)
• Temperature range
  -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
• Spikes
  max. 200 mV ss/pp
• Mains failure bridging time
  min. 30 ms (100 V AC); 5 A (24 V DC)
• Connection
  Push-In spring clamp terminals
• Power Boost
  Iout N × 150% (min. 4 s)
• Output voltage
  24 V DC (SELV), ±1%; 24...28 V adjustable
• Output current
  5 A
• Relative humidity
  5...95%, no condensation
• Input voltage
  85...265 V AC/90...250 V DC
• Product article number of manufacturer
  9000-11112-0921111
• Standards
  IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
• Unit protection
  short-circuit and overload protected
• Dimensions H×W×D
  123×50×138 mm
• Ripple
  max. 50 mV eff/rms
Inrush current after 1 ms
max. 5.5 A (230 V AC)
Efficiency
92.7% (110 V AC); 94.5% (230 V AC)
Frequency
50...60 Hz
Input fuse (internal)
6.3 A (T)
LED display
LED (green): OK; LED (red): overload, overheating or short-circuit
Power factor
0.87 (230 V AC)
