85441 Murr Elektronik AC/DC Power Supplies

85441 on Applied Automation
Murr Elektronik

Part#:85441

Manufacturer:Murr Elektronik

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

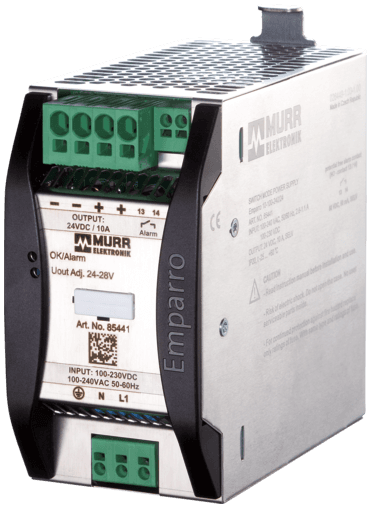

85441 Murrelektronik - EMPARRO POWER SUPPLY 1-PHASE, IN: 100-240VAC OUT: 24-28VDC/10A, Power Boost - for 4 seconds 50% additional power

Product Details

  • Weight
    925 g
  • Series
    Transformators/Power Supplies
  • Protection
    IP20
  • Ripple
    max. 50 mV eff/rms
  • Frequency
    50...60 Hz
  • Mounting method
    DIN-rail mountable TH35 (EN 60715)
  • Unit protection
    short-circuit and overload protected
  • Output voltage
    24 V DC (SELV), ±1%; 24...28 V adjustable
  • Mains failure bridging time
    min. 30 ms (100 V AC); 10 A (24 V DC)
  • Input fuse (internal)
    6.3 A (T)
  • Power Boost
    Iout N × 150% (min. 4 s)
  • Input current
    2.6 A (100 V AC); 1.1 A (240 V AC)
  • Connection
    Push-In spring clamp terminals
  • Spikes
    max. 200 mV ss/pp
  • Dimensions H×W×D
    123×65×138 mm
  • LED display
    LED (green): OK; LED (red): overload, overheating or short-circuit
  • Power factor
    0.95 (230 V AC)
  • Relative humidity
    5...95%, no condensation
  • Inrush current after 1 ms
    max. 13 A
  • Efficiency
    92.8% (110 V AC); 94.3% (230 V AC)
  • Parallel usage/serial usage
    max. 5 units/max. 2 units
  • Standards
    IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
  • Input voltage
    85...265 V AC/90...250 V DC
  • Temperature range
    -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
  • Output current
    10 A
  • Product article number of manufacturer
    85441

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 85441 on Applied Automation is $442.95. Order now.
