85152 Murr Elektronik AC/DC Power Supplies
Part#:85152
Manufacturer:Murr Elektronik
Category:AC/DC Power Supplies
Product Lifecycle:Active
Product description

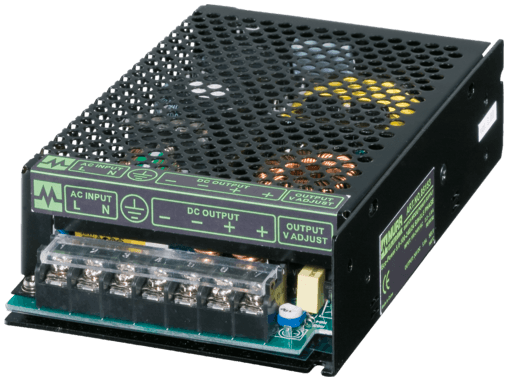

85152 Murrelektronik - ECO-POWER POWER SUPPLY 1-PHASE, IN: 90-264 VAC OUT: 24V/2,5ADC, protection class of the housing IP00
Product Details
- Weight 430 g
- Series Transformators/Power Supplies
- Temperature range 0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)
- Input current 1.2 A (115 V AC); 0.5 A (230 V AC)
- Dimensions H×W×D 40×98×135 mm
- Input voltage 100...240 V AC
- Spikes max. 100 mV ss/pp
- Inrush current after 1 ms max. 20 A
- Product article number of manufacturer 85152
- Relative humidity 20...90%, no condensation
- Unit protection short-circuit and overload protected
- Mounting method screw fixing, M3
- Mains failure bridging time min. 10 ms (115 V AC); min. 90 ms (230 V AC)
- Output voltage 24 V DC ±1%
- Efficiency 85% (115 V AC); 87% (230 V AC)
- Parallel usage/serial usage no/yes (max. 2 units)
- Primary fusing external max. 16 A
- Output current 2.5 A (+40 °C); 2.0 A (+50 °C)
- Ripple max. 20 mV eff/rms
- LED display LED (green) for output voltage
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B
- Frequency 50...60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
