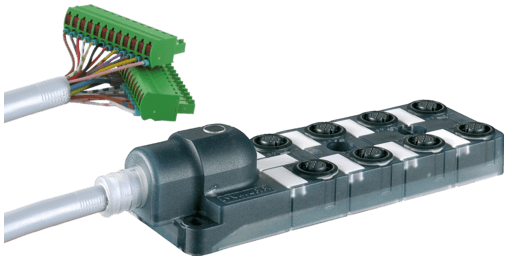

8000-98510-3981500 Murr Elektronik I/O Distributors

Product Details

• Weight
  2570 g
• Series
  Distribution Systems
• Outer Ø
  10.0 mm ±5%
• Diameter (core)
  16× 0.34 + 3× 0.75 mm²
• Color (jacket)
  gray
• PIN 5
  (Earth)
• Wire isolation
  PVC
• Construction (core)
  19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Nominal voltage
  U0/U 300/300 V AC
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• No./diameter of wires
  16× 0.34 + 3× 0.75 mm²
• Approval (cable)
  UL (AWM-Style 21441/10955), CE conform
• Shore hardness (wire isolation)
  43 ±5 D
• Bend radius (moving)
  10× outer Ø
• Acceleration (C-track)
  max. 10 m/s²
• C-track properties
  2 Mio.
• Cable number
  398
• Material (jacket)
  PUR/PVC
• Temperature range (mobile)
  -5...+60 °C
Product article number of manufacturer
8000-98510-3981500
Housing
Plastic, flame retardant
Cable identification
398
Material (wire isolation)
PVC
Jacket Color
gray
PIN 1
(+)
Temperature range
-20...+70 °C, depending on cable quality
Material (wire)
Cu wire, bare
Shore hardness (jacket)
87 ±5 A
Outer-Ø (jacket)
10.0 mm ±5%
Bend radius (fixed)
5× outer Ø
Locking of ports
Screw thread (M12×1 mm)
Single wire Ø (core)
0.15 mm
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Current load capacity
to DIN VDE 0298-4
PIN 3
(-)
Protection
IP65/IP67
Cable weight [g/m]
165 g
Shield
no
Temperature range (fixed)
-30...+80 °C
PIN 4
(NO)/(S1)
Operating voltage
24 V DC
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
PIN 2
(NC)/(S2)
Operating current per contact
max. 4 A
Cable Type
2 (PUR/PVC)
Color/numbering of wires
wh, grpk, brgn, ye, whgn, gn, rdbl, vi, grbr, bk, whgr, rd, yebr, pk, whye, gr+bl, br, gnye longitudinally striped
Test voltage
2000 V AC
Travel speed (C-track)
max. 2 m/s
