8000-88511-3980500 Murr Elektronik I/O Distributors
Part#:8000-88511-3980500
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Product description

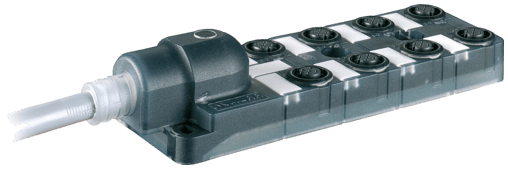

8000-88511-3980500 Murrelektronik - EXACT12, 8XM12, 5-POLE, MOULDED CABLE, 5.0m PUR/PVC 16x0,34+3X0.75, NPN-LED's
Product Details
- Weight 1060 g
- Series Distribution Systems
- Locking of ports Screw thread (M12×1 mm)
- Housing Plastic, flame retardant
- Wire-Ø incl. isolation 1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Acceleration (C-track) max. 10 m/s²
- Cable number 398
- Construction (core) 19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
- Material (jacket) PUR/PVC
- Bend radius (fixed) 5× outer Ø
- PIN 5 (Earth)
- Operating voltage 24 V DC
- Approval (cable) UL (AWM-Style 21441/10955), CE conform
- Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
- Color (jacket) gray
- Travel speed (C-track) max. 2 m/s
- Operating current per contact max. 4 A
- Cable identification 398
- AWG similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
- Jacket Color gray
- No. of bending cycles (C-track) max. 2 Mio. (25 °C)
- Wire isolation PVC
- Single wire Ø (core) 0.15 mm
- Color/numbering of wires wh, grpk, brgn, ye, whgn, gn, rdbl, vi, grbr, bk, whgr, rd, yebr, pk, whye, gr+bl, br, gnye longitudinally striped
- Test voltage 2000 V AC
- PIN 1 (+)
- No./diameter of wires 16× 0.34 + 3× 0.75 mm²
- Resistor (core) max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
- Shield no
- Bend radius (moving) 10× outer Ø
- PIN 3 (-)
- Protection IP65/IP67
- Outer Ø 10.0 mm ±5%
- Material (wire isolation) PVC
- Nominal voltage U0/U 300/300 V AC
- PIN 4 (NO)/(S1)
- C-track properties 2 Mio.
- Material (wire) Cu wire, bare
- Shore hardness (jacket) 87 ±5 A
- Temperature range (mobile) -5...+60 °C
- Product article number of manufacturer 8000-88511-3980500
- Temperature range -20...+70 °C, depending on cable quality
- Cable weight [g/m] 165 g
- Shore hardness (wire isolation) 43 ±5 D
- Current load capacity to DIN VDE 0298-4
- PIN 2 (NC)/(S2)
- Cable Type 2 (PUR/PVC)
- Diameter (core) 16× 0.34 + 3× 0.75 mm²
- Outer-Ø (jacket) 10.0 mm ±5%
- Temperature range (fixed) -30...+80 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
