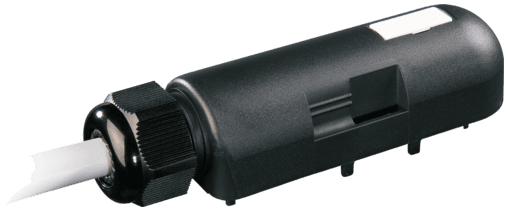

8000-88149-3951500 Murr Elektronik I/O Distributors

Product Details

• Weight
  2480 g
• Series
  Distribution Systems
• Cable number
  395
• Resistor (core)
  max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
• Wire-Ø incl. isolation
  1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
• Bend radius (fixed)
  5× outer Ø
• Wire isolation
  PVC
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Nominal voltage
  U0/U 300/300 V AC
• Product article number of manufacturer
  8000-88149-3951500
• Temperature range
  -20...+80 °C, depending on cable quality
• Construction (core)
  19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
• Shore hardness (wire isolation)
  43 ±5 D
• Test voltage
  2000 V AC
• Housing
  Plastic, flame retardant
• Diameter (core)
  16× 0.34 + 2× 0.75 mm²
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Travel speed (C-track)
  max. 2 m/s
• Cable Type
  2 (PUR/PVC)
• Material (wire)
  Cu wire, bare
Jacket Color
gray
Bend radius (moving)
10× outer Ø
Total current
max. 8 A
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
Shield
no
Acceleration (C-track)
max. 5 m/s²
Cable weight [g/m]
154 g
Color (jacket)
gray
Temperature range (fixed)
-30...+80 °C
Outer Ø
9.6 mm ±5%
Material (wire isolation)
PVC
Material (jacket)
PUR/PVC
No. of bending cycles (C-track)
1.5 Mio.
No./diameter of wires
16× 0.34 + 2× 0.75 mm²
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Shore hardness (jacket)
85 ±5 A
Current load capacity
to DIN VDE 0298-4
C-track properties
1.5 Mio.
Outer-Ø (jacket)
9.6 mm ±5%
Temperature range (mobile)
-5...+60 °C
