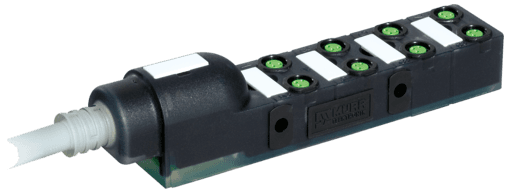

8000-88110-3951500 Murr Elektronik I/O Distributors

Product Details

• Weight
  2378 g
• Series
  Distribution Systems
• Operating current per contact
  max. 2 A
• C-track properties
  1.5 Mio.
• Wire-Ø incl. isolation
  1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
• Jacket Color
  gray
• Travel speed (C-track)
  max. 2 m/s
• Operating voltage
  24 V DC
• Cable Type
  2 (PUR/PVC)
• Diameter (core)
  16× 0.34 + 2× 0.75 mm²
• Outer-Ø (jacket)
  9.6 mm ±5%
• No. of bending cycles (C-track)
  1.5 Mio.
• Temperature range
  -20...+80 °C, depending on cable quality
• Approval (cable)
  UL (AWM-Style 21441/10955), CE conform
• Construction (core)
  19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
• Temperature range (fixed)
  -30...+80 °C
• Total current
  max. 8 A
• Cable weight [g/m]
  154 g
• Material (jacket)
  PUR/PVC
• Nominal voltage
  U0/U 300/300 V AC
PIN 1
(+)
Outer Ø
9.6 mm ±5%
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
Color (jacket)
gray
Bend radius (moving)
10× outer Ø
Product article number of manufacturer
8000-88110-3951500
Housing
Plastic, flame retardant
No./diameter of wires
16× 0.34 + 2× 0.75 mm²
Material (wire isolation)
PVC
Current load capacity
to DIN VDE 0298-4
PIN 4
(NO)/(S1)
Protection
IP65/IP67
Wire isolation
PVC
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Test voltage
2000 V AC
PIN 2
(NC)/(S2)
Signal per port
2
Material (wire)
Cu wire, bare
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 5 m/s²
Form
88110
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Shore hardness (jacket)
85 ±5 A
Bend radius (fixed)
5× outer Ø
PIN 3
(-)
Locking of ports
Screw thread (M8×1 mm)
Cable number
395
Shore hardness (wire isolation)
43 ±5 D
Temperature range (mobile)
-5...+60 °C
