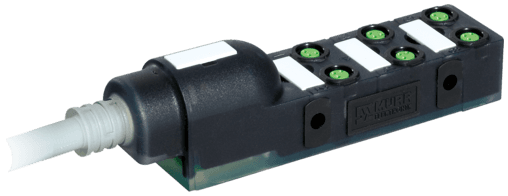

8000-86011-3560500 Murr Elektronik I/O Distributors

Product Details

• Weight
  581 g
• Series
  Distribution Systems
• Form
  86011
• Wire isolation
  TPE (ye, wh, gn, gr, pk, rd+br, bl)
• Bend radius (fixed)
  5× outer Ø
• Temperature range
  -20...+80 °C, depending on cable quality
• Outer Ø
  8.5 mm ±5%
• PIN 1
  (+)
• Total current
  max. 8 A
• Temperature range (fixed)
  -40...+80 °C
• Product article number of manufacturer
  8000-86011-3560500
• No./diameter of wires
  6× 0.34 + 2× 0.75 mm²
• Temperature range (mobile)
  -5...+60 °C
• Operating current per contact
  max. 2 A
• PIN 4
  (NO)/(S1)
• Housing
  Plastic, flame retardant
• Bend radius (moving)
  10× outer Ø
• Operating voltage
  24 V DC
• Jacket Color
  gray
• Locking of ports
  Screw thread (M8×1 mm)
Cable number
356
Material (jacket)
PUR (UL/CSA)
Protection
IP65/IP67
Color (jacket)
gray
Signal per port
1 - (31-32)
C-track properties
5 Mio.
PIN 3
(-)
