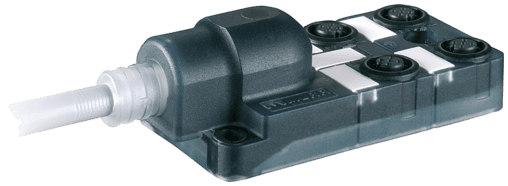

8000-84512-3630500 Murr Elektronik I/O Distributors

Product Details

• Weight
  790 g
• Series
  Distribution Systems
• Wire isolation
  PVC
• Cable identification
  363
• AWG
  similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
• Outer-Ø (jacket)
  8.1 mm ±5%
• Bend radius (moving)
  10× outer Ø
• Temperature range
  -20...+70 °C, depending on cable quality
• Outer Ø
  8.1 mm ±5%
• Diameter (core)
  8× 0.34 + 3× 0.75 mm²
• Jacket Color
  gray
• PIN 2
  (NC)/(S2)
• Locking of ports
  Screw thread (M12×1 mm)
• Shore hardness (wire isolation)
  43 ±5 D
• Color (jacket)
  gray
• Travel speed (C-track)
  max. 2 m/s
• No./diameter of wires
  8× 0.34 + 3× 0.75 mm²
• Cable weight [g/m]
  115,5 g
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Current load capacity
  to DIN VDE 0298-4
PIN 3
(-)
Operating current per contact
max. 4 A
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Shield
no
Temperature range (fixed)
-30...+80 °C
Product article number of manufacturer
8000-84512-3630500
Housing
Plastic, flame retardant
Cable Type
2 (PUR/PVC)
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Test voltage
2000 V AC
Acceleration (C-track)
max. 10 m/s²
Cable number
363
Material (wire)
Cu wire, bare
Color/numbering of wires
wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped
Nominal voltage
U0/U 300/300 V AC
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
C-track properties
2 Mio.
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Material (wire isolation)
PVC
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
PIN 1
(+)
Protection
IP65/IP67
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Shore hardness (jacket)
87 ±5 A
Temperature range (mobile)
-5...+70 °C
PIN 5
(Earth)
Operating voltage
125 V AC/DC
Single wire Ø (core)
0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Material (jacket)
PUR/PVC
Bend radius (fixed)
5× outer Ø
PIN 4
(NO)/(S1)
