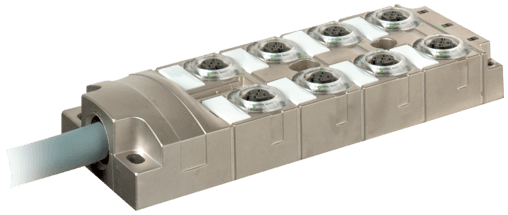

8000-58513-4010500 Murr Elektronik I/O Distributors

Product Details

• Weight
  1450 g
• Series
  Distribution Systems
• No./diameter of wires
  16× 0.34 + 3× 0.75 mm²
• Outer Ø
  11.7 mm ±5%
• optical shield cover
  min. 80%
• Current load capacity
  to DIN VDE 0298-4
• PIN 2
  (NC)/(S2)
• Temperature range
  -20...+90 °C, depending on cable quality
• Construction (core)
  42× 0.1 mm (0.34 mm²); 96× 0.1 mm (0.75 mm²); (multi-strand wire class 6)
• Shore hardness (wire isolation)
  55 ±5 D
• Temperature range (mobile)
  -40...+90 °C
• Travel speed (C-track)
  max. 2 m/s
• Wire isolation
  TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye)
• Cable identification
  401
• Material (jacket)
  PUR
• Jacket Color
  gray
• Product article number of manufacturer
  8000-58513-4010500
• Protection
  IP65, IP67, IP68
• Material (wire isolation)
  TPE-E
• Temperature range (fixed)
  -40...+90 °C
PIN 4
(NO)/(S1)
Locking of ports
Screw thread (M12×1 mm)
Single wire Ø (core)
0.1 mm
Color/numbering of wires
grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye
Outer-Ø (jacket)
11.7 mm ±5%
PIN 3
(-)
C-track properties
5 Mio.
Material (wire)
Cu wire, bare
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Color (jacket)
gray
No. of bending cycles (C-track)
max. 5 Mio. (25 °C)
Operating voltage
24 V DC
Resistor (core)
max. 53 Ω/km (0.34 mm²); max. 26 Ω/km (0.75 mm²); (20 °C)
Diameter (core)
16× 0.34 + 3× 0.75 mm²
Test voltage
2000 V AC
Bend radius (fixed)
10× outer Ø
PIN 5
(Earth)
Housing
Zinc die casting, matte nickel plated
Approval (cable)
UL (AWM-Style 20233/10042), CSA; CE conform
Shield (Type)
Copper braid
Shore hardness (jacket)
94 ±5 A
PIN 1
(+)
Operating current per contact
max. 4 A
Cable number
401
Cable weight [g/m]
237,6 g
Shield
yes
Wire-Ø incl. isolation
1.3 ±5% mm (0.34 mm²); 2.6 ±5% (0.75 mm²)
Nominal voltage
300/300 V AC
chemical resistance
good resistance to oil, gasoline and chemicals (ISO 6722)
Bend radius (moving)
12× outer Ø
