8000-54712-4010500 Murr Elektronik I/O Distributors
Part#:8000-54712-4010500
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Product description

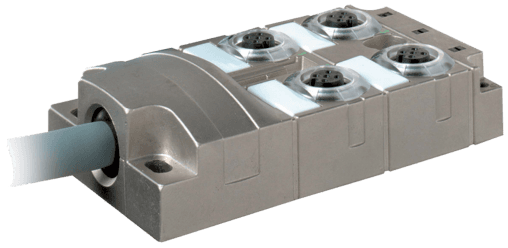

8000-54712-4010500 Murrelektronik - MVP12-METALL, 4XM12, 5-POLE, PRE-WIRED ABLE, 5.0m PUR 16x0,34+3X0.75, no LED's & pins selectable, replacement for 27462
Product Details
- Weight 1340 g
- Series Distribution Systems
- C-track properties 5 Mio.
- Resistor (core) max. 53 Ω/km (0.34 mm²); max. 26 Ω/km (0.75 mm²); (20 °C)
- Shield yes
- optical shield cover min. 80%
- Temperature range (mobile) -40...+90 °C
- PIN 5 (Earth)
- Wire isolation TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye)
- Approval (cable) UL (AWM-Style 20233/10042), CSA; CE conform
- AWG similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
- Wire-Ø incl. isolation 1.3 ±5% mm (0.34 mm²); 2.6 ±5% (0.75 mm²)
- Travel speed (C-track) max. 2 m/s
- Temperature range -20...+90 °C, depending on cable quality
- Shore hardness (wire isolation) 55 ±5 D
- Outer-Ø (jacket) 11.7 mm ±5%
- Current load capacity to DIN VDE 0298-4
- Housing Zinc die casting, matte nickel plated
- Material (wire isolation) TPE-E
- Material (jacket) PUR
- Nominal voltage 300/300 V AC
- PIN 3 (S3)
- Locking of ports Screw thread (M12×1 mm)
- Construction (core) 42× 0.1 mm (0.34 mm²); 96× 0.1 mm (0.75 mm²); (multi-strand wire class 6)
- chemical resistance good resistance to oil, gasoline and chemicals (ISO 6722)
- Bend radius (moving) 12× outer Ø
- Operating voltage max. 42 V AC/DC
- Cable number 401
- Material (wire) Cu wire, bare
- Test voltage 2000 V AC
- No. of bending cycles (C-track) max. 5 Mio. (25 °C)
- Cable identification 401
- Color/numbering of wires grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye
- Jacket Color gray
- PIN 2 (S2)
- No./diameter of wires 16× 0.34 + 3× 0.75 mm²
- Cable weight [g/m] 237,6 g
- Shield (Type) Copper braid
- PIN 1 (S1)
- Product article number of manufacturer 8000-54712-4010500
- Operating current per contact max. 4 A
- Outer Ø 11.7 mm ±5%
- Single wire Ø (core) 0.1 mm
- Color (jacket) gray
- Bend radius (fixed) 10× outer Ø
- Protection IP65, IP67, IP68
- Diameter (core) 16× 0.34 + 3× 0.75 mm²
- Shore hardness (jacket) 94 ±5 A
- Temperature range (fixed) -40...+90 °C
- PIN 4 (S4)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
