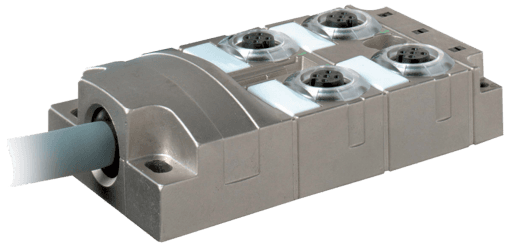

8000-54510-4480300 Murr Elektronik I/O Distributors

Product Details

• Weight
  730 g
• Series
  Distribution Systems
• Protection
  IP65, IP67, IP68
• Approval (cable)
  UL (AWM-Style 20233), CSA
• PIN 2
  (NC)/(S2)
• Operating current per contact
  max. 4 A
• Bend radius (fixed)
  5× outer Ø
• Housing
  Zinc die casting, matte nickel plated
• Temperature range (mobile)
  -40...+90 °C
• PIN 4
  (NO)/(S1)
• Locking of ports
  Screw thread (M12×1 mm)
• Cable number
  448
• Material (jacket)
  PUR (UL/CSA)
• Material (wire)
  Cu wire, bare
• PIN 5
  (Earth)
• C-track properties
  5 Mio.
• Jacket Color
  gray
• Product article number of manufacturer
  8000-54510-4480300
• Temperature range
  -20...+90 °C, depending on cable quality
• Construction (core)
  64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
PIN 3
(-)
Wire isolation
TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye)
Outer Ø
9.1 mm ±5%
PIN 1
(+)
Operating voltage
24 V DC
Temperature range (fixed)
-40...+90 °C
No./diameter of wires
8× 0.5 + 3× 1.0 mm²
Bend radius (moving)
10× outer Ø
