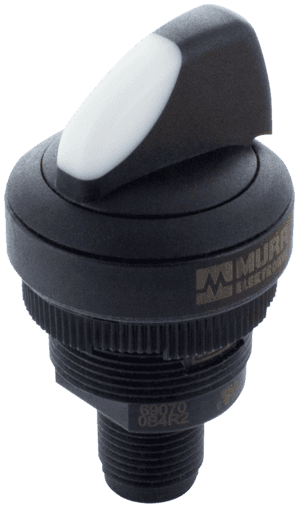

69071 Murr Elektronik I/O Systems

Product Details

• Weight
  28 g
• Series
  Field Bus System
• Mechanical endurance B10
  250000
• Dimensions H×W×D
  29,8 x 53,9 mm
• Housing
  Plastic
• Rated voltage UL 60947
  ≤ 30 V AC/DC
• Grid min.
  30 mm
• Contact function
  2 S
• Actuating function
  latching
• UL Enclosure Type Rating (Front side)
  type 4X
• Rated insulation voltage
  250 V
• Mounting depth
  30,1 mm
• Rated operating voltage (DC-13)
  35 V
• Switching voltage
  1...32 V
• Mounting hole
  22,3 mm
• Protection class (IP), rear side
  IP65
• Short-circuit current
  1000 A
• Relative humidity
  ≤ 93% @ 40 °C
• Product article number of manufacturer
  69071
• Color
  black
Switching current
1...100 mA
Terminal
M12, 4-pole, A-coded
Can be illuminated
no
Kind of short circuit protective device
fuse 250 V / 0.1 A / 1.5 kA gG quick
Installation height max.
≤ 2000 m
Contact material
Gold
Rated operating current Ie
0,1 A
Mechanical endurance
200000
Salt-spray resistance
IEC 60068-2-11
Fixing
Threaded ring
Rated operating voltage (AC-15)
35 V
Collar color
black
Power rating (voltage dependent)
0,25 W
operating temperature
-40...85 °C
Degree of protection (IP), front side
IP65
Bezel color
white
Rated surge voltage
2500 V
storage temperature
-40...90 °C
Installation height
23,8 mm
Collar shape
round
Color of front ring
black
