56710 Murr Elektronik I/O Systems
Part#:56710
Alt. Part#:56711
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

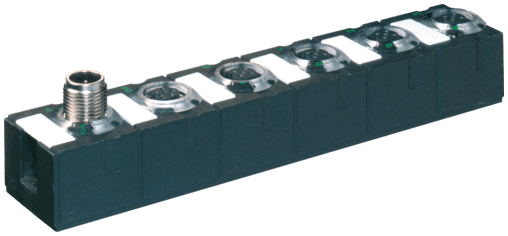

56710 Murrelektronik - CUBE67 I/O COMPACT MODULE, 4 analog outputs (U), Cube67 AO4 C 4xM12 (U)
Product Details
- Weight 140 g
- Series Field Bus System
- LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
- Actuator warning per channel via LED and BUS
- Temperature range 0...+55 °C (storage temperature -20...+75 °C)
- I/O ports M12 (female) 5-pole, A-coded
- Conversion time (analog) approx. 1 ms (per channel)
- Product article number of manufacturer 56710
- Wire break upper/lower limit overload per channel via LED and BUS
- Protection IP67
- Fieldbus via internal system connection
- Monitoring - no voltage yes
- Accuracy max. ±0.5% (of range limit)
- Communication status via LED
- Resolution (analog) 11 Bit + sign
- Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
- Diagnostic via BUS per module and channel
- Actuator supply UA 24 V DC (EN 61131-2), max. 1.6 A (M12 female), short-circuit and overload protected
- Input range ±10 V DC, 0...10 V DC
- Diagnostic via LED per module and channel
- Dimensions H×W×D 126×30×34.5 mm
- Current consumption max. 50 mA
- Short-circuit and overload yes
- Mounting method 2-hole screw mounting
- Load min. 500 Ω
- Supply voltage 24 V DC (EN 61131-2), via system connection (max. 4 A)
- Monitoring - under voltage yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 56710 on Applied Automation is $548.05. Order now.
