5665610 Murr Elektronik I/O Systems
Part#:5665610
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

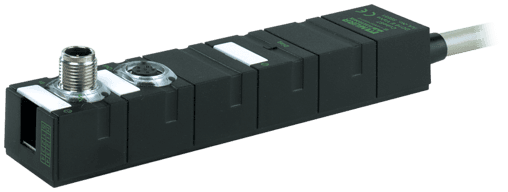

5665610 Murrelektronik - Cube67 Valve-Interface, I/O Extension Module, DO32, Vesta Valves, Sub-D 37 pol., 0,5m
Product Details
- Weight 400 g
- Series Field Bus System
- Short-circuit and overload yes
- Diagnostic via LED per module
- Diagnostic via BUS per module and channel
- Communication status via LED
- Current consumption max. 50 mA
- Monitoring - no voltage yes
- Monitoring - under voltage yes
- Actuator warning per channel via BUS
- Product article number of manufacturer 5665610
- I/O ports VESTA (SUB-D37)
- LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
- Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
- Fieldbus via internal system connection
- Switching current per output max. 0.5 A (short-circuit and overload protected)
- Mounting method 2-hole screw mounting
- No./diameter of wires 36× 0.14 mm²
- Temperature range 0...+55 °C (storage temperature -20...+75 °C)
- Cable Length 0.5 m
- Protection IP67
- Material (jacket) PVC
- Actuator supply UA 24 V DC (EN 61131-2), via system connection (max. 4 A)
- Dimensions H×W×D 150×30×34.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5665610 on Applied Automation is $728.75. Order now.
