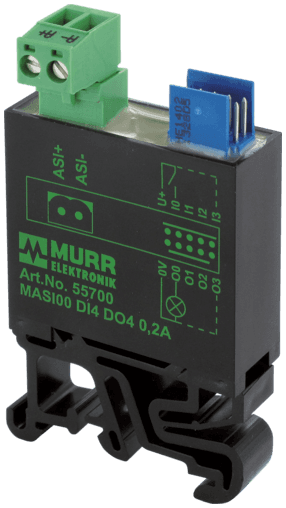

55700 Murr Elektronik I/O Systems

Product Details

• Weight
  54 g
• Series
  Field Bus System
• Protection
  IP00
• Product article number of manufacturer
  55700
• Profile (IO/ID/ID2 code)
  S-7.F.F
• Switching current per output
  max. 0.2 A (short-circuit and overload protected)
• Temperature range
  0...+55 °C (storage temperature -20...+70 °C)
• Total current
  max. 200 mA
• Address range
  1...31
• Switch off time in case of short circuit
  approx. 50 ms
• Connection AS-Interface
  Screw plug-in terminal: 0.2...2.5 mm²
• Sensor supply US
  max. 200 mA from AS-Interface (short-circuit and overload protected)
• Addressing
  1...31 via plug terminals
• Communication status
  via LED
• Bus voltage (AS-Interface)
  26.5...31.6 V DC
• Monitoring - no voltage
  yes
• Dimensions H×W×D
  43×15×81 mm
• Mounting method
  DIN-rail mountable (EN 60715)
• Type
  for standard switches
• Total current (AS-Interface)
  max. 250 mA
Diagnostic via LED
per module
