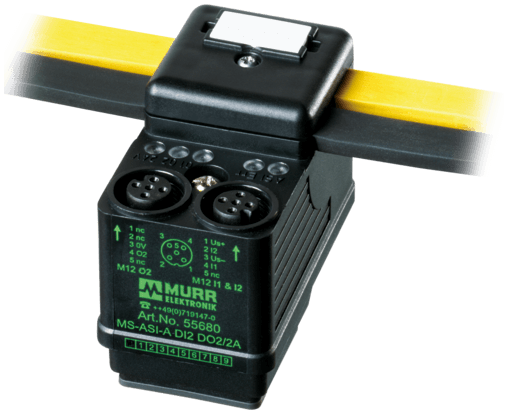

55680 Murr Elektronik I/O Systems

Product Details

• Weight
  40 g
• Series
  Field Bus System
• Temperature range
  -20...+70 °C (storage temperature -20...+70 °C)
• Switching current per output
  max. 2 A (short-circuit and overload protected)
• Dimensions H×W×D
  50×33×66 mm
• Monitoring - no voltage
  yes
• Protection
  IP67
• Product article number of manufacturer
  55680
• Supply voltage
  24 V DC external (18...30.2 V DC) EN 61131-2, connection via black AS-Interface profile cable
• Diagnostic via LED
  per module
• Total current (AS-Interface)
  max. 250 mA
• Addressing
  1...31 via address port
• Sensor supply US
  max. 200 mA from AS-Interface (short-circuit and overload protected)
• Bus voltage (AS-Interface)
  26.5...31.6 V DC
• Type
  for 3-wire sensors or mechanical switches, PNP
• Connection
  OUT 1 (Form A), OUT 2 (M12)
• Pin spacing
  18 mm
• Communication status
  via LED
• Profile (IO/ID/ID2 code)
  S-3.F.E
• Total current
  max. 2 A (only 1 output active)
