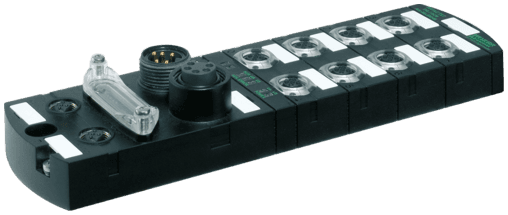

55130 Murr Elektronik I/O Systems

Product Details

• Weight
  494 g
• Series
  Field Bus System
• Temperature range
  -25...+55 °C (storage temperature -25...+70 °C)
• Actuator warning
  per channel via LED and BUS
• Protection
  IP67
• Dimensions H×W×D
  39×63×225 mm
• Specification
  V2.3, Conformance Class C (IRT)
• Fieldbus
  Ethernet 10/100 Mbit/s; M12, D-coded
• Diagnostic via BUS
  per module and channel
• Switching current per output
  max. 1.6 A (short-circuit and overload protected)
• FSU (Fast-Start-Up)
  max. 500 ms
• PROFINET Netload Class
  III
• Mounting method
  2-hole screw mounting, compatible with I/O modules of MVK model range
• Lamp load
  10 W
• Product article number of manufacturer
  55130
• Type
  for 3-wire sensors or mechanical switches, PNP
• Communication status
  via LED
• Monitoring - under voltage
  yes
• Actuator supply UA
  24 V DC (EN 61131-2), max. 9 A
• Sensor-system/actuator supply
  7/8", 5-pole, 2× max. 9 A
Cable break
per port
PIN 2
Input/Output (port X0...X7)
Addressing
DCP
Diagnostic via LED
per module and channel
Sensor supply US
24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Shared Device
yes, for 2 controls
PIN 4
Input/Output (port X0...X7)
I/O ports
M12, 5-pole, A-coded
Monitoring - no voltage
yes
