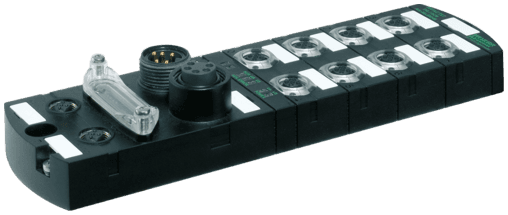

55086 Murr Elektronik I/O Systems

Product Details

• Weight
  440 g
• Series
  Field Bus System
• Switching current per output
  max. 2 A (short-circuit and overload protected)
• Protection
  IP67
• Diagnostic via LED
  per module and channel
• Sensor-system/actuator supply
  7/8", 5-pole, 2× max. 9 A
• Mounting method
  2-hole screw mounting, compatible with I/O modules of MVK model range
• Communication status
  via LED
• Monitoring - under voltage
  yes
• Sensor supply US
  24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
• Product article number of manufacturer
  55086
• Temperature range
  -25...+55 °C (storage temperature -25...+70 °C)
• Addressing
  DHCP, BOOTP or IP address by rotary switch
• Type
  for 3-wire sensors or mechanical switches, PNP
• Dimensions H×W×D
  39×63×225 mm
• I/O ports
  M12, 5-pole, A-coded
• Diagnostic via BUS
  per module and channel
• Fieldbus
  Ethernet 10/100 Mbit/s; M12, D-coded
• Monitoring - no voltage
  yes
