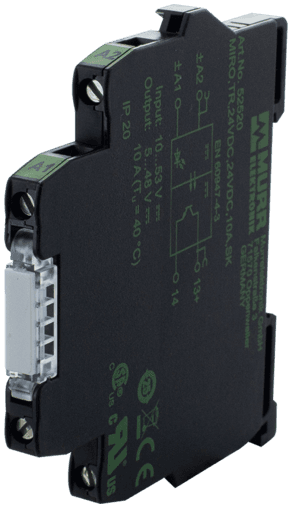

52521 Murr Elektronik Control Circuits
Part#:52521

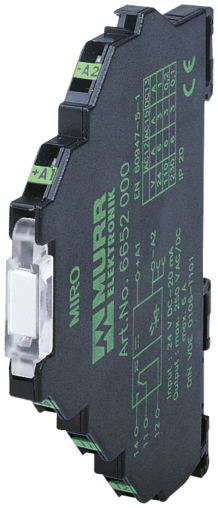

Alt. Part#:6652520
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description
52521 Murrelektronik - MIRO TR 24VDC 24VDC 10A SK OPTO-COUPLER MODULE, IN: 53 VDC - OUT: 48 VDC / 10 A, 6,2 mm screw-type terminal
Product Details
- Weight 40 g
- Series Interface Modules
- Leakage current (output is open) max. 25 µA
- Test isolation voltage 2.75 kV
- Voltage range ON 10...53 V DC
- Dimensions H×W×D 78×6.2×70 mm
- Voltage range OFF 0...5 V DC
- Mounting method DIN-rail mountable (EN 60715)
- Switching time ON/OFF 2/5 ms (10 A load)
- Switching frequency max. 1/0.1 Hz (resist./ind.)
- LED display LED (yellow)
- Temperature range -20...+60 °C
- Control current 10 mA
- Housing Black plastic, flame retardant
- Switching voltage 5...48 V DC
- Switching current per output 1 mA...10 A, short-circuit and overload protected (pulse switching)
- Saturation voltage (across output) max. 0.12 V DC
- Product article number of manufacturer 52521
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 52521 on Applied Automation is $127.75. Order now.
