52350 Murr Elektronik Control Circuits
Part#:52350
Alt. Part#:6652350
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

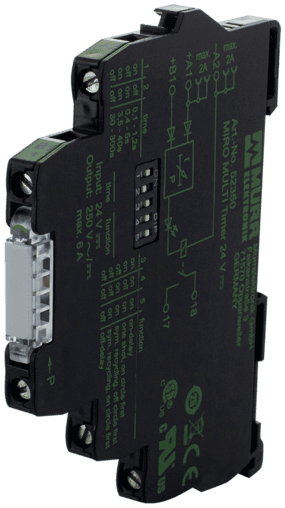

52350 Murrelektronik - MIRO MULTI TIMER 24VDC-1S, MIRO 6.2 MULTI-TIMER 24VDC-1S, IN: 24 VDC - OUT: 250 VAC/DC / 6A, 1 C/O contact / 6,2 mm screw-type terminal
Product Details
- Weight 36 g
- Series Interface Modules
- Dimensions H×W×D 91×6.2×71 mm
- Output voltage max. 250 V AC/DC
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Control current 5 mA (input B)
- Output rating max. 1500 VA/120 W
- Temperature range -25...+60 °C
- Input voltage 24 V DC (+10 -15%) input A
- Energize/release/contact bounce time 10/15/1.5 ms
- Contact material Ag Sn O2
- Test isolation voltage 4 kV; safe separation (EN 60947-1)
- Switching frequency max. 10 Hz
- Product article number of manufacturer 52350
- Mounting method DIN-rail mountable (EN 60715)
- Control voltage 24 V DC (+10 -15%) input B
- Min. load current 100 mA (12 V DC)
- Output current max. 6 A
- Input current 20 mA (input A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
