52146 Murr Elektronik Control Circuits
Part#:52146

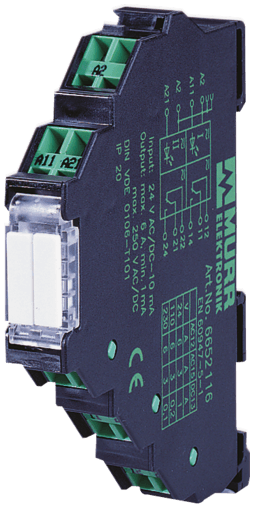

Alt. Part#:6652146
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

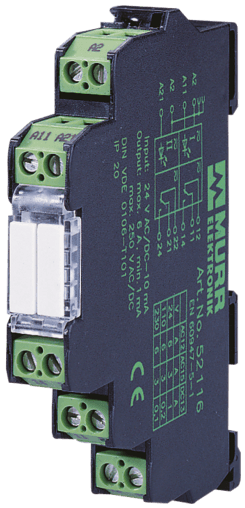

52146 Murrelektronik - MIRO 12.4 230V-2U INPUT RELAY, IN: 230 VAC/DC - OUT: 250 VAC/DC / 6 A, 2 C/O contact - 12,4 mm screw-type terminal
Product Details
- Weight 55 g
- Series Interface Modules
- Temperature range -20...+55 °C
- AC-12 6 A (24/110/230 V AC)
- Connection voltage - current 230 V AC/DC (195...253 V AC/DC) - 5 mA
- DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)
- Min. load current 1 mA (12 V DC)
- Contact material Ag Sn O2 hv
- Switching frequency max. 10 Hz
- LED display LED (green)
- Mech./ elect. life 20 000 000 switching cycles/load dependent
- Mounting method DIN-rail mountable (EN 60715)
- Switching current per output max. 6 A
- Dimensions H×W×D 90×12.4×70 mm
- AC-15 3 A (24/110/230 V AC)
- Switching voltage max. 250 V AC/DC
- Energize/release/contact bounce time 10/15/1.5 ms
- Power rating (voltage dependent) max. 1500 VA/120 W
- Test isolation voltage 4 kV; safe separation (EN 60947-1)
- Product article number of manufacturer 52146
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 52146 on Applied Automation is $93.35. Order now.
