51153 Murr Elektronik Control Circuits
Part#:51153
Alt. Part#:51152
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

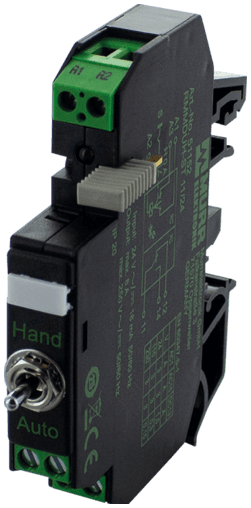

51153 Murrelektronik - RMMDAH-CTL 11/24 OUTPUT RELAY WITH TOGGLE SWITCH, IN: 24 VDC - OUT: 250 VAC/DC / 8 A, 1 C/O contact - 12 mm screw-type terminal
Product Details
- Weight 360 g
- Series Interface Modules
- Mech./ elect. life 30 000 000 switching cycles/load dependent
- Connection voltage - current 24 V DC (19.2...30 V DC) - 16 mA
- Power rating (voltage dependent) max. 2000 VA/240 W
- Energize/release/contact bounce time 10/10/2 ms
- Switching voltage max. 250 V AC/DC
- AC-15 3 A (24/110/230 V AC)
- Test isolation voltage 4.0 kV
- Dimensions H×W×D 82×12×82 mm
- Plug link (supplied) Art-No. 90960
- Contact material Ag Ni
- LED display LED (red)
- Temperature range -20...+50 °C
- Switching frequency max. 15 Hz
- Product article number of manufacturer 51153
- Min. load current 100 mA
- AC-1 8 A (24/110/230 V AC)
- Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
- Switching current per output max. 8 A; CTL: 10 mA
- DC-13 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 51153 on Applied Automation is $125.40. Order now.
