50030 Murr Elektronik Control Circuits
Part#:50030
Alt. Part#:52571
Manufacturer:Murr Elektronik
Category:Control Circuits
Product Lifecycle:Active
Product description

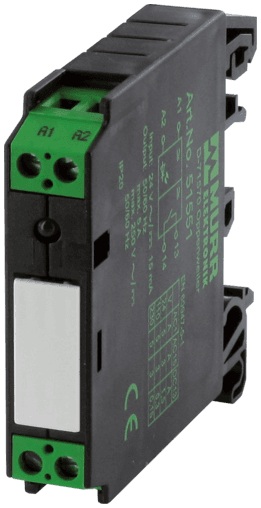

50030 Murrelektronik - AMMS 20-47/1 OPTO-COUPLER MODULE, IN: 53 VDC - OUT: 250 VAC / 1 A, 12 mm screw-type terminal
Product Details
- Weight 30 g
- Series Interface Modules
- Switching voltage 24...253 V AC
- Switching current per output 50 mA...1 A
- Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
- Input current 6.6 mA
- Saturation voltage (across output) max. 1.3 V AC
- Switching time ON/OFF 10/10 ms
- Temperature range -20...+60 °C
- Dimensions H×W×D 56×12×64 mm
- Product article number of manufacturer 50030
- Test isolation voltage 2.5 kV
- Voltage range OFF 0...3 V DC
- Housing Black plastic, flame retardant
- LED display LED (red)
- Switching frequency max. 20 Hz
- Leakage current (output is open) max. 5 mA
- Voltage range ON 10...53 V DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 50030 on Applied Automation is $99.55. Order now.
