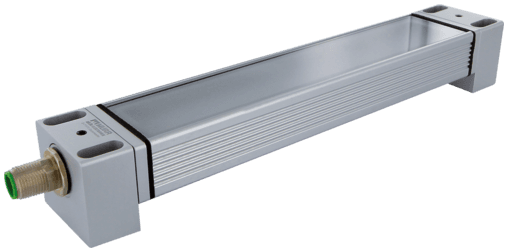

4000-75901-1415006 Murr Elektronik Electrical Connectors

Product Details

• Weight
  400 g
• Series
  Control Technology Modules
• Luminaire light current
  approx. 630 lm
• Material (light cover)
  diffuse single-pane safety glass (ESG), 4 mm
• Luminaire light yield
  approx. 105 lm/W
• Vibration stress
  2...9 Hz/10 mm; 9...200 Hz/3 g
• Input current
  6 W
• Protection
  IP67
• Coding
  A-coded
• Screw head-Ø
  max. 12 mm/M5
• Shock load
  50 g, 11 ms
• Connection
  M12 (male)
• Relative humidity
  5...95%
• Operating voltage
  24 V DC (21.6...27.6 V DC)
• Mounting method
  rotatable
• Color reproduction (Ra)
  > 80
• Installation altitude
  Operation up to 2 000 m
• Product article number of manufacturer
  4000-75901-1415006
• No. of poles
  4-pole
• Dimensions H×W×D
  37×235×40 mm (1.46×9.25×1.57 in)
Light color
Daylight white, approx. 5500 K
Temperature range
-30...+50 °C
Lighting angle
> 120°
Material (housing)
Anodized aluminum
