4000-75900-1715016 Murr Elektronik Electrical Connectors
Part#:4000-75900-1715016
Manufacturer:Murr Elektronik
Category:Electrical Connectors
Product Lifecycle:Active
Product description

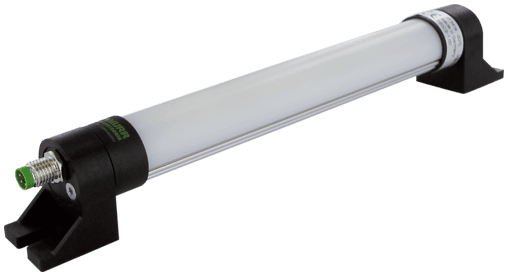

4000-75900-1715016 Murrelektronik - Modlight Illumix Slim Line C16W, LED machine lamp, IP54, 24VDC, 2xM8 connection
Product Details
- Weight 400 g
- Series Control Technology Modules
- Connection M8 (male)
- Relative humidity 5...95%
- Light color Daylight white, approx. 5500 K
- Material (housing) Anodized aluminum
- Color reproduction (Ra) > 80
- Protection IP54
- Lighting angle > 120°
- Material (light cover) Diffuse polystyrene (PS)
- Input current 16 W
- Shock load 50 g, 11 ms
- No. of poles 4-pole
- Mounting method rotatable
- Dimensions H×W×D 34×638×24 mm (1.34×25.12×0.94 in)
- Luminaire light current approx. 1680 lm
- Vibration stress 2...9 Hz/10 mm; 9...200 Hz/3 g
- Operating voltage 24 V DC (21.6...27.6 V DC)
- Temperature range -30...+50 °C
- Product article number of manufacturer 4000-75900-1715016
- Coding A-coded
- Installation altitude Operation up to 2 000 m
- Luminaire light yield approx. 105 lm/W
- Screw head-Ø max. 12 mm/M5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 4000-75900-1715016 on Applied Automation is $414.30. Order now.
