4000-68522-0011441 Murr Elektronik Electrical Connectors
Part#:4000-68522-0011441
Manufacturer:Murr Elektronik
Category:Electrical Connectors
Product Lifecycle:Active
Product description

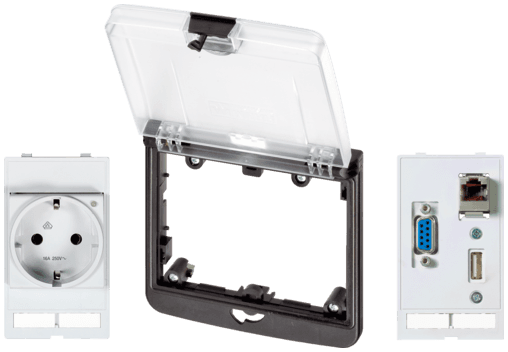

4000-68522-0011441 Murrelektronik - Modlink MSDD-set: Frame 4000-68522-0000001, insert 4000-68000-0010000 + 4000-68000-1440000
Product Details
- Weight 371 g
- Series Control Technology Modules
- Housing Frame: plastic PA black, cap: plastic PC transparent
- Specification CAT5e, Class D, 100 MHz, (EN 50173-1)
- Operating current 3 A
- suitable for mounting with wall thickness 1...5 mm
- Operating voltage 48 V AC/DC
- Connection Screw terminals: max. 2× 6 mm² (AWG 10)
- Connection front side RJ45
- Locking of ports Snap In
- Protection IP65
- No. of poles 9-pole
- LED display yellow
- Product article number of manufacturer 4000-68522-0011441
- Operating voltage (UL Rating) max. 30 V AC/42.4 V DC
- Connection rear side RJ45
- Temperature range -30...+70 °C (storage temperature -30...+80 °C)
- Operating current (UL Rating) max. 175 mA
- Tightening torque 0.9 Nm ±0.1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 4000-68522-0011441 on Applied Automation is $321.85. Order now.
