4000-68223-0010310 Murr Elektronik Electrical Connectors
Part#:4000-68223-0010310
Manufacturer:Murr Elektronik
Category:Electrical Connectors
Product Lifecycle:Active
Product description

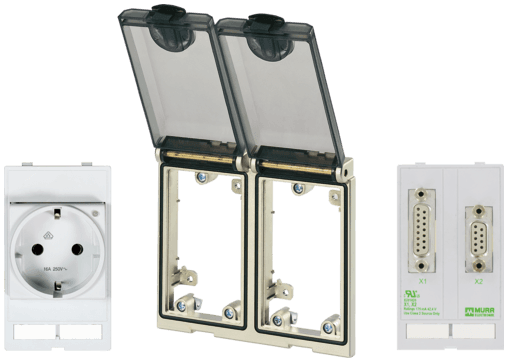

4000-68223-0010310 Murrelektronik - Modlink MSDD-set: Frame 4000-68223-0000000, insert 4000-68000-0010000 + 4000-68000-0310000
Product Details
- Weight 510 g
- Series Control Technology Modules
- Connection rear side SUB-D (solder connection)
- Locking of ports UNC 4...40 bolt
- Operating current 3 A
- Product article number of manufacturer 4000-68223-0010310
- Operating voltage (UL Rating) max. 30 V AC/42.4 V DC
- Temperature range -10...+60 °C (storage temperature -25...+60 °C)
- LED display yellow
- Operating current (UL Rating) max. 175 mA
- Housing Frame: zinc die-casting, with surface finishing, Lid: plastic, PC transparent
- No. of poles 9-pole
- suitable for mounting with wall thickness 1...5 mm
- Operating voltage 48 V AC/DC
- Protection IP65
- Connection front side SUB-D (female)
- Connection Screw terminals: max. 2× 6 mm² (AWG 10)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 4000-68223-0010310 on Applied Automation is $213.50. Order now.
4000-68223-0010310 Related Documents
Similar products from: Murr Elektronik Electrical Connectors
Manufacturer warranty
4000-68223-0010310 Murr Elektronik
$213.50
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$213.50
$213.50 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 4000-68223-0010310 with other Electrical Connectors products
Weight
Series
Connection rear side
Locking of ports
Operating current
Product article number of...
Operating voltage (UL Rat...
Temperature range
LED display
Operating current (UL Rat...
Selected product
4000-68223-0010310
Murr Elektronik
4000-68223-0010310 Murrelektronik - Modlink MSDD-set: Frame 4000-68223-0000000, insert 4000-68000-00...
Weight510 g
SeriesControl Technology Modules
Connection rear sideSUB-D (solder connection)
Locking of portsUNC 4...40 bolt
Operating current3 A
Product article number of manufacturer4000-68223-0010310
Operating voltage (UL Rating)max. 30 V AC/42.4 V DC
Temperature range-10...+60 °C (storage temper...
LED displayyellow
Operating current (UL Rating)max. 175 mA
4000-73000-0010000
Murr Elektronik
4000-73000-0010000 Murrelektronik - MSDD INSTALLATION SOCKET RJ45 BU/BU
Weight18 g
SeriesControl Technology Modules
Connection rear side-
Locking of ports-
Operating currentmax. 1.5 A
Product article number of manufacturer-
Operating voltage (UL Rating)-
Temperature range-
LED display-
Operating current (UL Rating)-
Weight-
SeriesPG Series
Connection rear side-
Locking of ports-
Operating current-
Product article number of manufacturer-
Operating voltage (UL Rating)-
Temperature range-
LED display-
Operating current (UL Rating)-
About the manufacturer
Applied Automation is an authorized Murr Elektronik distributor, offering a robust selection of high-quality components engineered to drive efficiency and innovation in industrial applications. Murr Elektronik, a leader in the electronics industry, specializes in providing sophisticated automation solutions that cater to diverse sectors by integrating cutting-edge technology with unmatched enginee...
About the Product Category
Electrical connectors, which are crucial components for connecting circuit subsections, enable easy disconnection when required. They are typically used for power inputs, peripheral connections, and interchangeable boards.
