4000-68122-0240010 Murr Elektronik Electrical Connectors
Part#:4000-68122-0240010
Manufacturer:Murr Elektronik
Category:Electrical Connectors
Product Lifecycle:Active
Product description

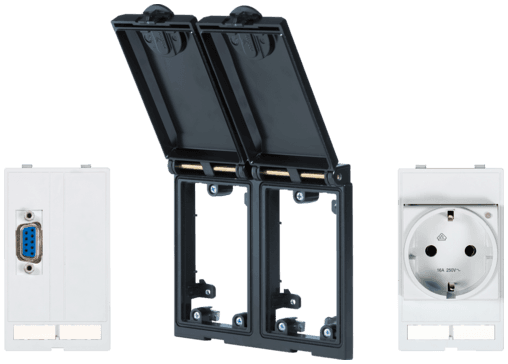

4000-68122-0240010 Murrelektronik - Modlink MSDD-set: Frame 4000-68122-0000000, insert 4000-68000-0240000 + 4000-68000-0010000
Product Details
- Weight 719 g
- Series Control Technology Modules
- No. of poles 9-pole
- Product article number of manufacturer 4000-68122-0240010
- Protection IP65
- Locking of ports UNC 4...40 bolt
- Temperature range -10...+60 °C (storage temperature -25...+60 °C)
- Connection rear side SUB-D (female)
- Operating current 3 A
- Operating voltage 48 V AC/DC
- Housing Zinc die-casting, KTL coated
- suitable for mounting with wall thickness 1...5 mm
- LED display yellow
- Operating voltage (UL Rating) max. 30 V AC/42.4 V DC
- Operating current (UL Rating) max. 175 mA
- Connection front side SUB-D (female)
- Connection Screw terminals: max. 2× 6 mm² (AWG 10)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 4000-68122-0240010 on Applied Automation is $204.40. Order now.
