CDDM-72 Mencom Electronic Components

Name: CDDM-72
Brand: Mencom
Price: 18.05 USD
Availability: BackOrder

Part#:CDDM-72

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

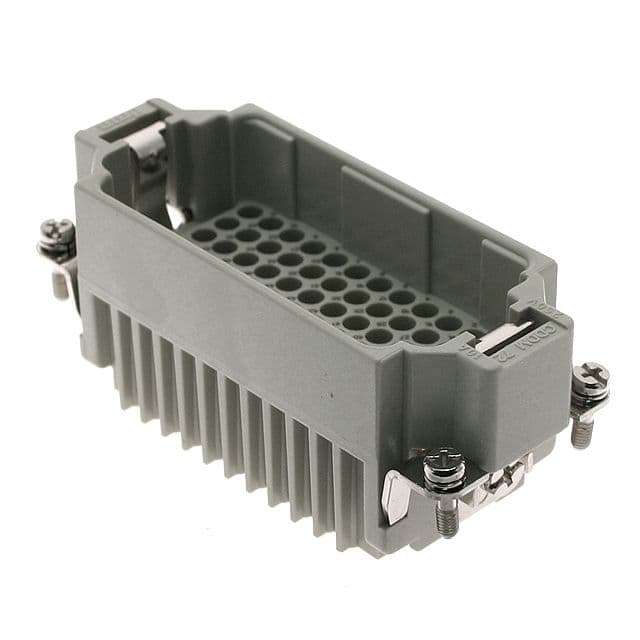

Standard, CDD series, Male Rectangular Insert, size 77.27, 72 pin, 10 amp, Crimp

Product Details

Product Type
Rectangular Connectors
ILME Series
CDD
Cover
No
Component Type
Insert
Voltage Rating
600
Lower AWG
26
Pin Count
72
Temperature Range in Degrees Celsius
-40 C to +125 C
Gender
Male
Insert Dimension
77.27
Amperage Rating
10
Enclosure Dimension
77.27
Weight (lbs.)
0.129000
Gasket/O-Ring
No
Termination
Crimp
Housing/Insert Type
Standard
Double Insert
77.62
Upper AWG
14

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CDDM-72 on Applied Automation is $18.05. Order now.
