Applied Automation Logo

TV-4D Clippard Electronic Components

TV-4D on Applied Automation
Clippard

Part#:TV-4D

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

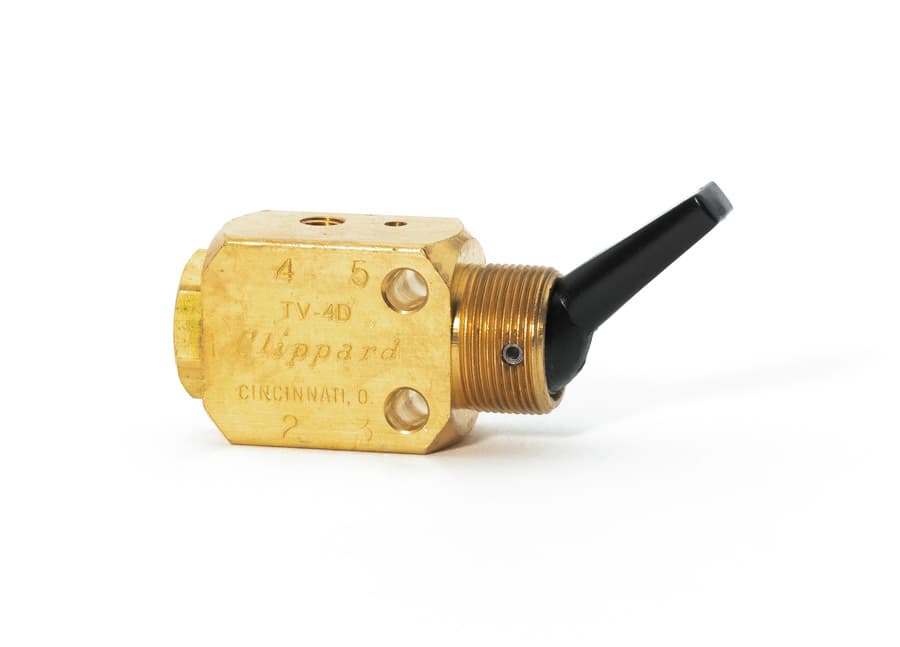

3-Position, 4-Way Valve, N-C, Plastic Toggle, #10-32, Brass body, Nitrile seals, Stainless Steel spring, Designed for use with Clippard manual, air-pilot, electric or mechanical actuators.

Product Details

  • Force to Rotate Toggle
    8 oz. nominal
  • Input PSI
    150 psig max.
  • Unit
    Imperial
  • Actuation
    Detented/Detented
  • Medium
    Air
  • Flow
    125 l/min @ 50 psig; 210 l/min @ 100 psig
  • Material, Toggle
    Plastic
  • Weight
    0.1800
  • Seals
    Nitrile Std., FKM & Krytox Optional
  • Max PSI
    120 psig
  • Included Item(s)
    Nut & lockwashers
  • Port
    #10-32
  • Mount
    5/8-32 Thread
  • Temperature Range
    32 to 230°F

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TV-4D on Applied Automation is $44.42. Order now.
