MSV-1 Clippard Electronic Components

MSV-1 on Applied Automation
Clippard

Part#:MSV-1

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

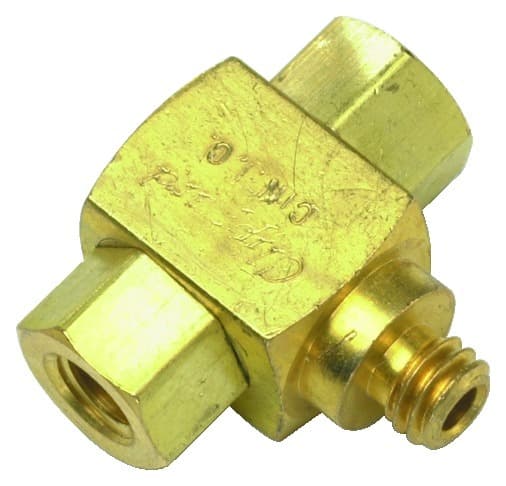

Shuttle Valve, #10-32 Male Outlet, #10-32 Female Inlets, Shuttle valves should not be used as a pressure selector. Flow from "A" to "C" or "B " to "C".

Product Details

  • Operating Pressure
    250 psig max.
  • Max PSI
    250 psig
  • Max. Flow
    5.0 scfm @ 50 psig; 9.5 scfm @ 100 psig
  • Material, Body
    Brass Body & Poppet
  • Port, Exhaust
    Through port where pressure was last applied
  • Ports (Inlet A / Inlet B / Outlet C)
    #10-32 Fem A & B / #10-32 Male
  • Medium
    Air, Water or Oil
  • Weight
    0.0400
  • Seals
    Nitrile
  • Force to Shift
    1/2 psig approx.
  • Temperature Range
    32 to 230 F

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MSV-1 on Applied Automation is $12.81. Order now.

Manufacturer warranty

MSV-1 Clippard

$12.81

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$12.81

$12.81 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
