ESO-3W-12 Clippard Electronic Components

ESO-3W-12 on Applied Automation
Clippard

Part#:ESO-3W-12

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

3-Way Universally-Ported Valve, Wire Leads, #10-32 Top Port, 12 VDC

Product Details

  • Current
    0.083 Amp
  • Mount
    Manifold Mount
  • Function
    3-Way Universally-Ported
  • Weight
    0.0850
  • Max. psig
    105 psig
  • Voltage Tolerance
    90 to 120% of Rated Voltage
  • Material, Seals
    Nitrile
  • Operating Pressure
    28" Hg Vac. to 105 psig
  • Length
    .92
  • Wattage
    1 Watt at Rated Voltage
  • Material, Body
    ENP Carbon Steel, Nickel Iron Alloy, 300 Series Stainless Steel
  • Voltage
    12 VDC
  • Accessories

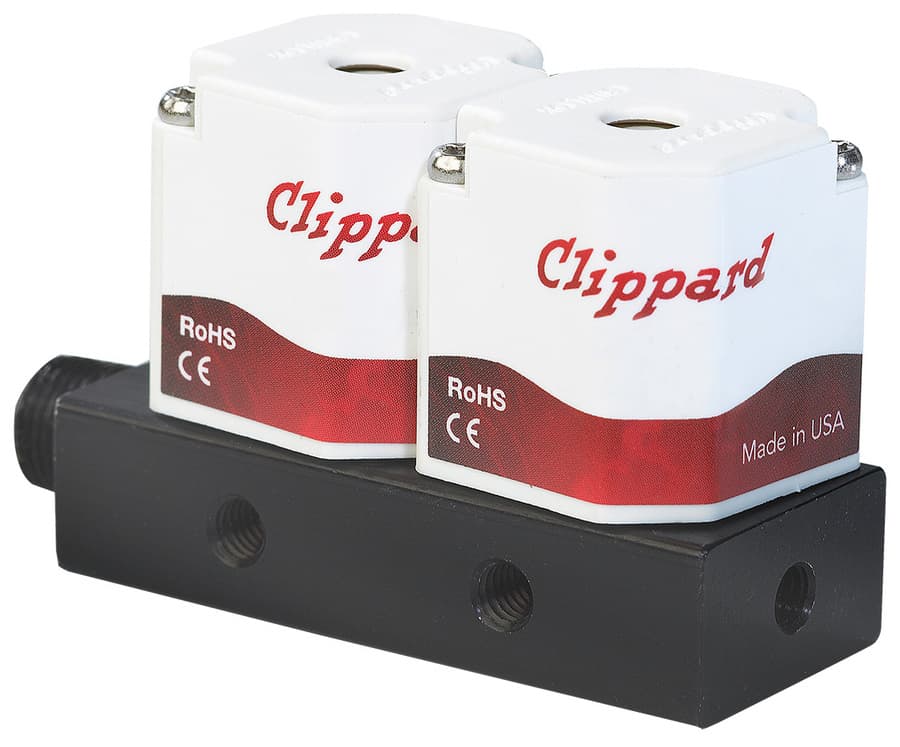

    Manifolds: Single, Side Port 26090-1, Single, Bottom Port 26090-2, Double-Station 26090-3, Cover for Unused Manifold Station ESM-CP
  • Orifice
    0.025" (105 psig max)
  • Medium
    Clean, Dry Air and Compatible Gases (40 micron filter recommended)
  • Coil Resistance
    144 Ω
  • Operating Temperature Range
    32 to 150°F (0 to 66°C)
  • Connection
    Wire Leads, Side (Radial), 18"
  • Response Time
    5 to 10 ms (nominal)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ESO-3W-12 on Applied Automation is $46.90. Order now.

ESO-3W-12 Related Documents

2DValveFiles.pdfDataSheet-Imperial.pdf2DManifoldFiles.pdfDataSheet-Metric.pdf

Manufacturer warranty

ESO-3W-12 Clippard

$46.90
