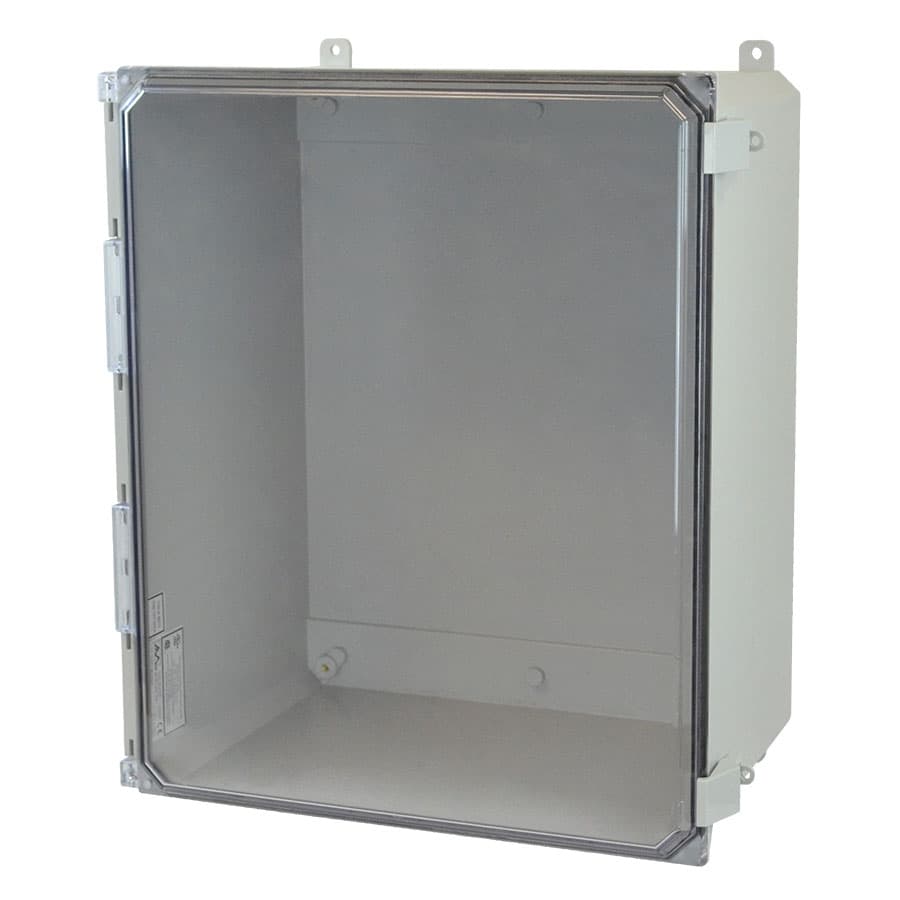

AMU2060CCNL Allied Moulded Products Electrical Enclosures

Product Details

• Width
  16.09 in
• Height
  19.87 in
• Depth
  9.95 in
• Material
  Fiberglass
• Closure Type:
  Nonmetal Snap Latch
• UPC:
  085339978565
• Height:
  19.87 in
• Carton Weight:
  18 lbs
• Depth:
  9.95 in
• Patents:
  U.S. Patent No. 7,572,975
• Cover Type:
  Clear Polycarbonate
• UNSPSC:
  39121324
• Enclosure Type:
  JIC Size
• Usable Depth:
  10.09 in
• Carton Quantity:
  1
• Mounting Description:
  Nonmetal feet fastened to back side brass inserts
• Country of Origin:
  United States of America
• Volume:
  3517 cu. in.
• Color:
  Gray (RAL 7035) with clear cover
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Material:
ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Width:
16.09 in
Application:
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Brand:
ULTRALINE®
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
Additional Materials:
316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
