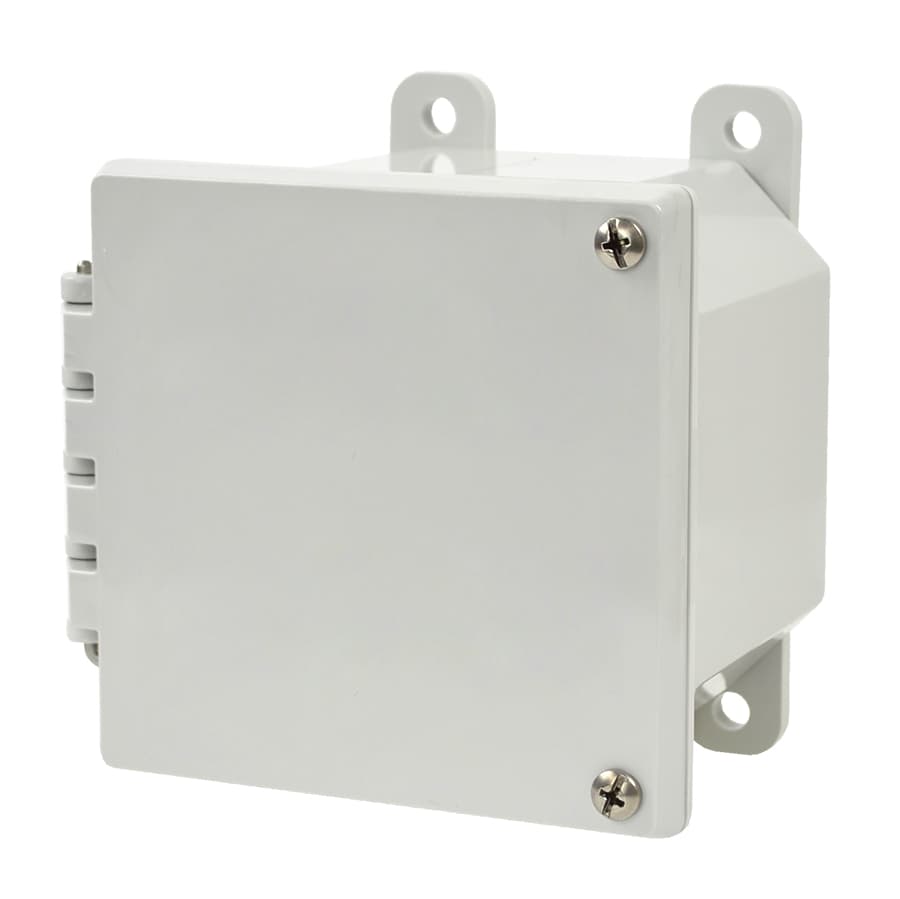

AMP443H Allied Moulded Products Electrical Enclosures

Product Details

• Width
  4.09 in
• Height
  4.09 in
• Depth
  3.88 in
• Material
  Polycarbonate
• Volume:
  51.75 cu. in.
• Enclosure Type:
  JIC Size
• Carton Weight:
  2 lbs
• Cover Type:
  Opaque
• Height:
  4.09 in
• Width:
  4.09 in
• Brand:
  POLYLINE®
• UNSPSC:
  39121324
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Color:
  Gray (RAL 7035)
• Patents:
  U.S. Patent No. 7,572,975
• Material:
  Polycarbonate box and cover
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
• UPC:
  85339934684
• Carton Quantity:
  1
• Mounting Description:
  Nonmetal feet fastened with self-threading screws
Depth:
3.88 in
Closure Type:
2-Screw
Usable Depth:
3.07 in
Country of Origin:
United States of America
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.
Application:
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
