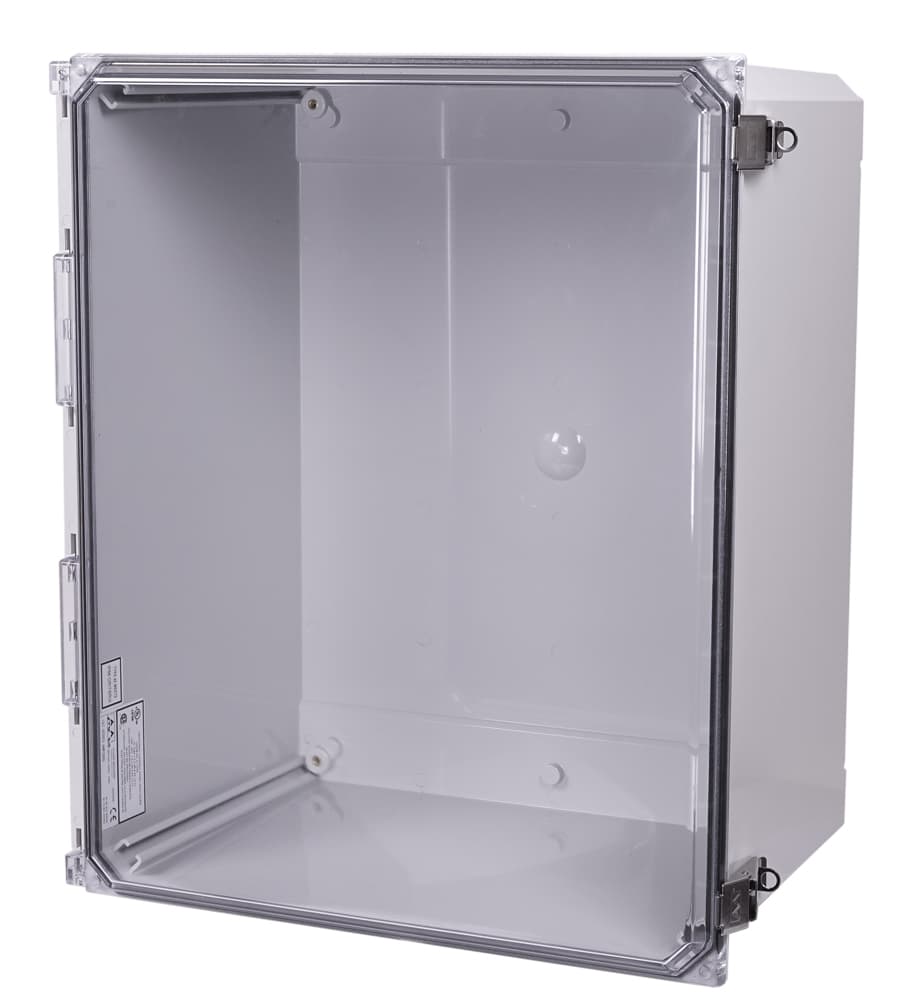

AMP2060CCL Allied Moulded Products Electrical Enclosures

Product Details

• Width
  15.43 in
• Height
  19.76 in
• Depth
  10 in
• Material
  Polycarbonate
• Brand:
  POLYLINE®
• Cover Type:
  Clear Polycarbonate
• Enclosure Type:
  JIC Size
• UPC:
  85339985754
• Closure Type:
  Metal Snap Latch
• Volume:
  3200 cu. in.
• Mounting Description:
  Nonmetal feet fastened to back side brass inserts
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
• Width:
  15.43 in
• Carton Weight:
  17 lbs
• Depth:
  10 in
• UNSPSC:
  39121324
• Color:
  Gray (RAL 7035) with clear cover
• Material:
  Polycarbonate box and clear polycarbonate cover
• Patents:
  U.S. Patent No. 7,572,975
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
Application:
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Height:
19.76 in
Usable Depth:
9.95 in
Carton Quantity:
1
Country of Origin:
United States of America
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
