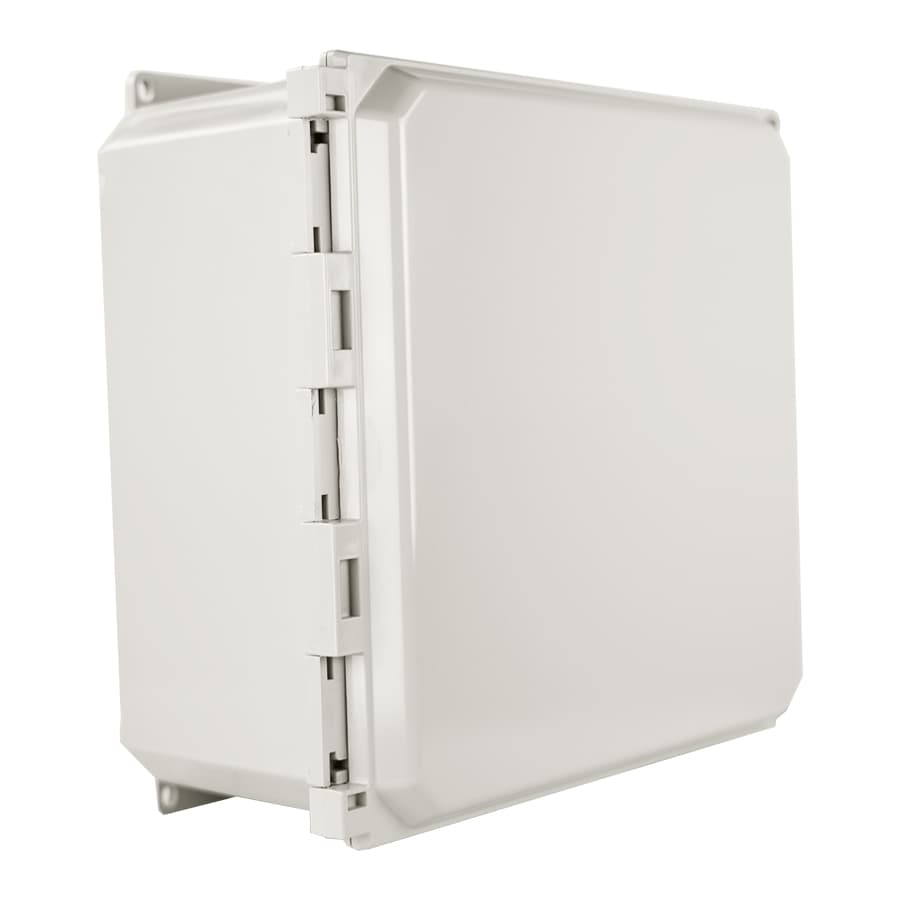

AMP1226HF Allied Moulded Products Electrical Enclosures

Product Details

• Width
  11.93 in
• Height
  11.93 in
• Depth
  5.94 in
• Material
  Polycarbonate
• Closure Type:
  2-Screw
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
• Width:
  11.93 in
• Carton Quantity:
  1
• Enclosure Type:
  JIC Size
• Country of Origin:
  United States of America
• Volume:
  864 cu. in.
• Patents:
  U.S. Patent No. 7,572,975
• Depth:
  5.94 in
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• UPC:
  85339985136
• Height:
  11.93 in
• Brand:
  POLYLINE®
• UNSPSC:
  39121324
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Carton Weight:
  6 lbs
Material:
Polycarbonate box and cover
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
Cover Type:
Opaque
Mounting Description:
Nonmetal flange fastened to back side brass inserts
Usable Depth:
6.06 in
Color:
Gray (RAL 7035)
