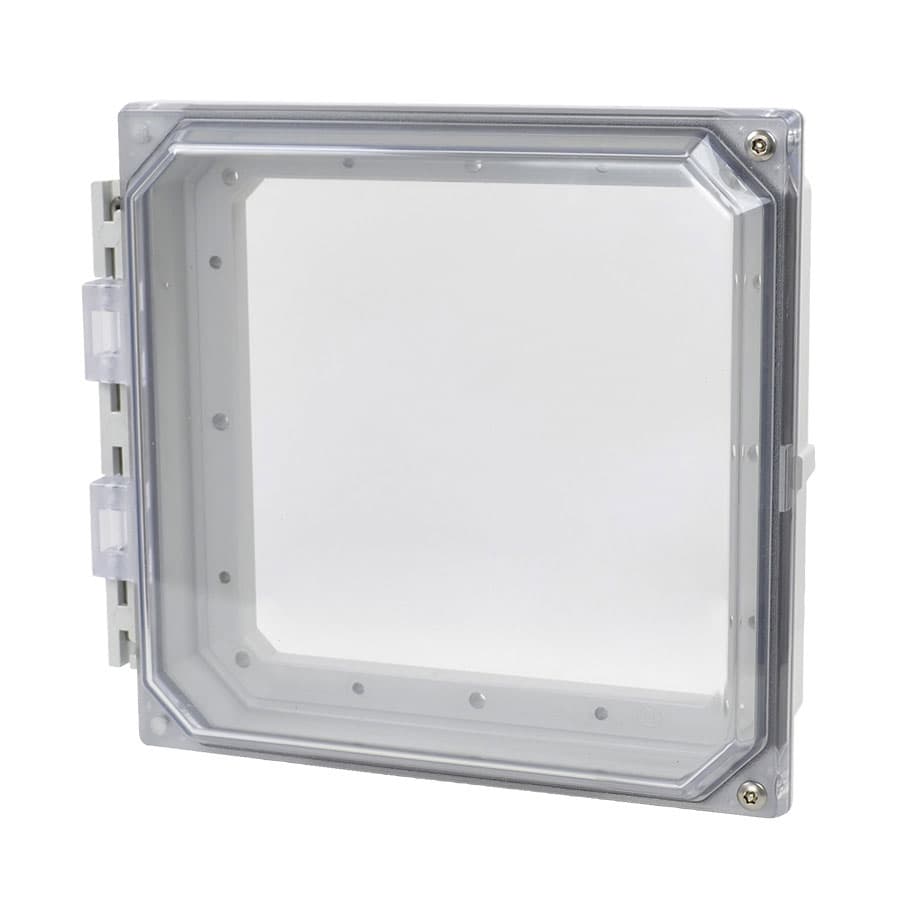

AMHMI88CCHTP Allied Moulded Products Enclosure Accessories

Product Details

• Width
  8.15 in
• Height
  7.93 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Depth:
  0.96 in
• Country of Origin:
  United States of America
• Mounting Description:
  8 Screws
• Usable Depth:
  2.27 in
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• Width:
  8.15 in
• UPC:
  85339978398
• Closure Type:
  2-Screw (Tamper-Proof)
• Material:
  Polycarbonate frame and clear polycarbonate cover
• Height:
  7.93 in
• UNSPSC:
  39121302
• Cover Type:
  Clear Polycarbonate
• Carton Quantity:
  1
• Carton Weight:
  3 lbs
• Color:
  Gray (RAL 7035) with clear cover
Application:
Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of Type 4X enclosures. No need to open the enclosure to view electronics or perform main
Features:
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
