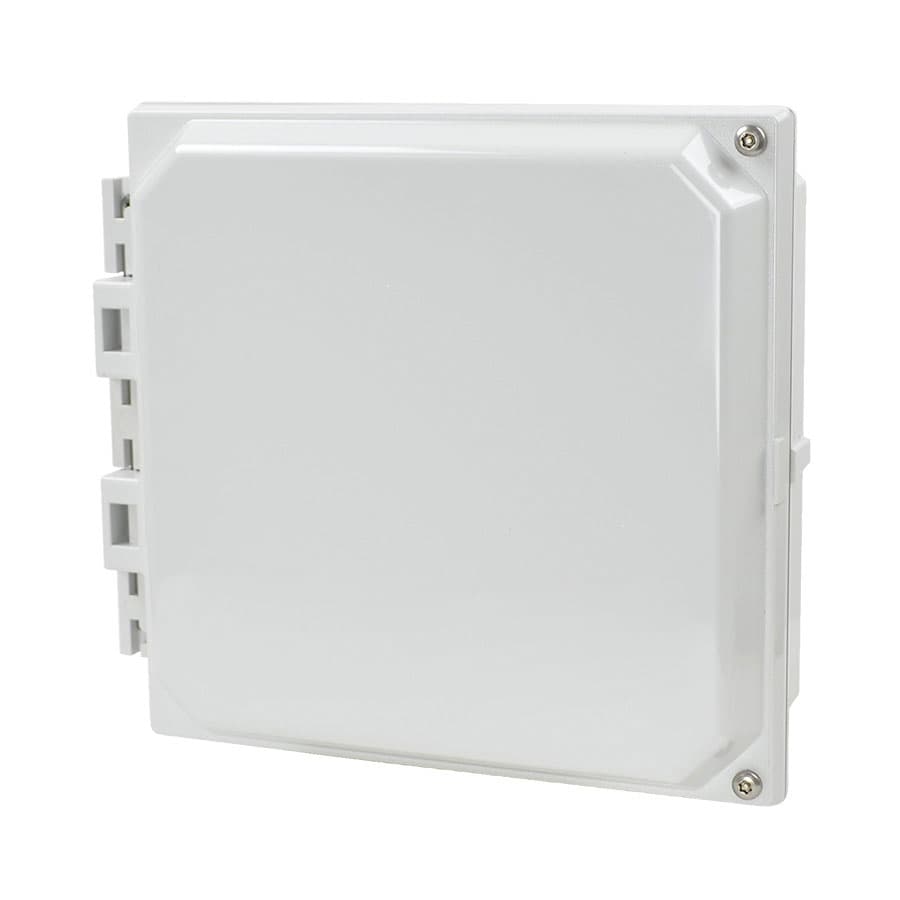

AMHMI66HTP Allied Moulded Products Enclosure Accessories

Product Details

• Width
  6.72 in
• Height
  6.5 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Mounting Description:
  8 Screws
• Closure Type:
  2-Screw (Tamper-Proof)
• UNSPSC:
  39121302
• Color:
  Gray (RAL 7035)
• Country of Origin:
  United States of America
• Width:
  6.72 in
• Carton Weight:
  3 lbs
• Height:
  6.5 in
• Carton Quantity:
  1
• UPC:
  85339985549
• Depth:
  0.96 in
• Material:
  Polycarbonate frame and cover
• Cover Type:
  Opaque
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• Usable Depth:
  2.27 in
• Additional Materials:
  316 stainless steel external hardware,
Application:
Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of Type 4X enclosures. No need to open the enclosure to view electronics or perform main
Features:
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
