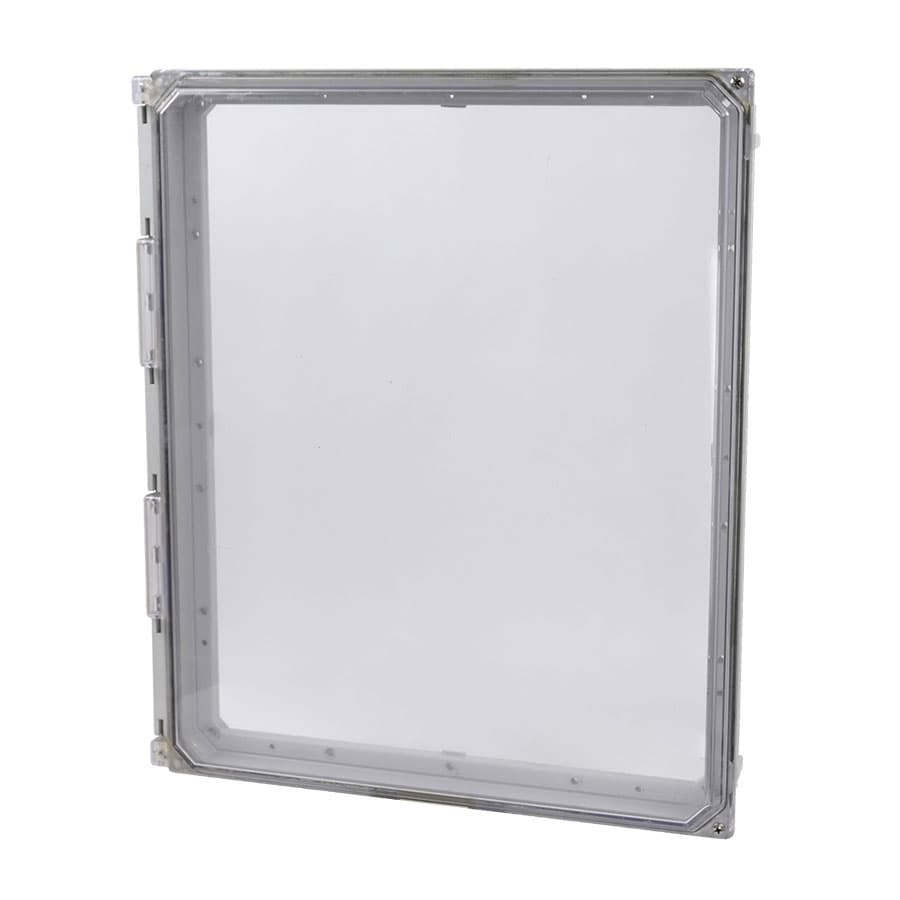

AMHMI206CCH Allied Moulded Products Enclosure Accessories

Product Details

• Width
  16.07 in
• Height
  19.85 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Closure Type:
  2-Screw
• UNSPSC:
  39121302
• Width:
  16.07 in
• Carton Quantity:
  1
• Cover Type:
  Clear Polycarbonate
• Volume:
  692 cu. in.
• UPC:
  85339978442
• Depth:
  0.96 in
• Material:
  Polycarbonate frame and cover
• Height:
  19.85 in
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• Usable Depth:
  2.17 in
• Mounting Description:
  18 Screws
• Carton Weight:
  8 lbs
• Country of Origin:
  United States of America
• Color:
  Gray (RAL 7035) with clear cover
Features:
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
Additional Materials:
321 stainless steel external hardware,
