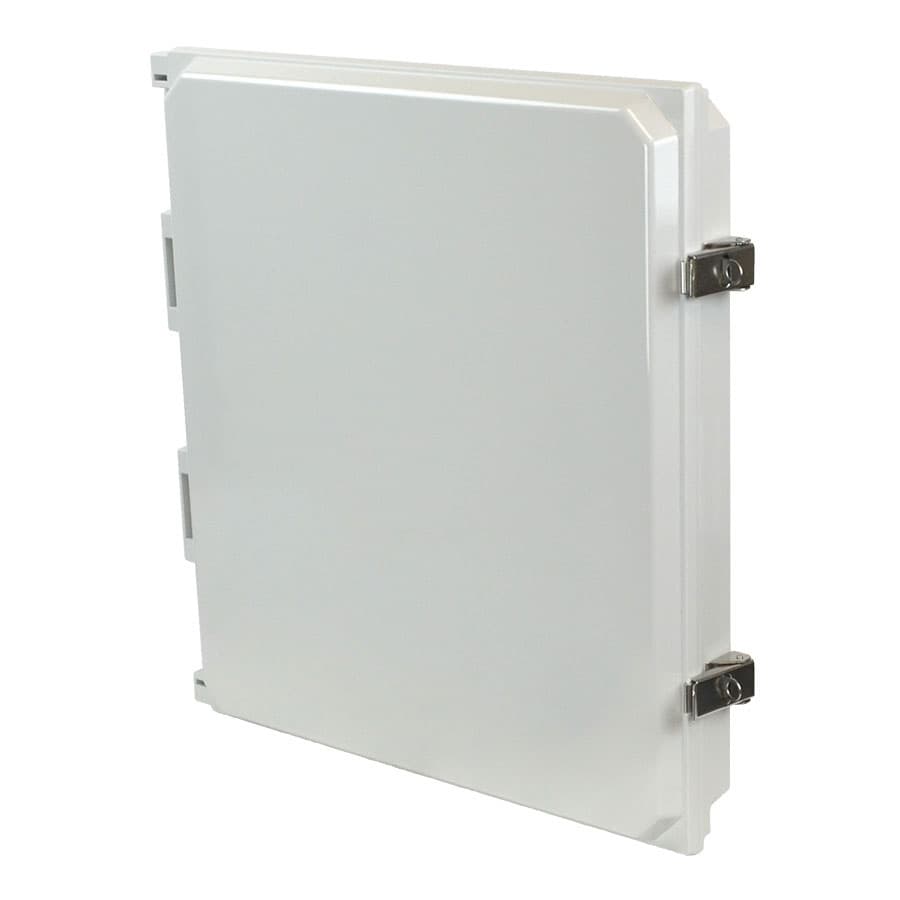

AMHMI164L Allied Moulded Products Enclosure Accessories

Product Details

• Width
  14.07 in
• Height
  15.87 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Volume:
  491 cu. in.
• Depth:
  0.96 in
• Country of Origin:
  United States of America
• Carton Weight:
  7 lbs
• Height:
  15.87 in
• Color:
  Gray (RAL 7035)
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Cover Type:
  Opaque
• Width:
  14.07 in
• Material:
  Polycarbonate frame and cover
• Usable Depth:
  2.2 in
• Standards:
  Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
• UNSPSC:
  39121302
• UPC:
  85339975410
• Closure Type:
  Metal Snap Latch
• Carton Quantity:
  1
Mounting Description:
10 Screws
Application:
Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
Features:
Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
